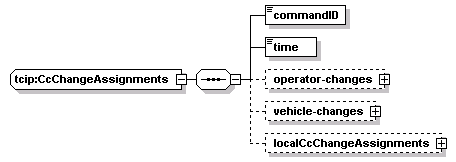

complexType tcip:CcChangeAssignments
diagram
namespace http://www.TCIP-Adopted-03-00-01
children commandID time operator-changes vehicle-changes localCcChangeAssignments
used by
element tcip:ccChangeAssignments
source <xs:complexType name="CcChangeAssignments">
  <xs:sequence>
    <xs:element name="commandID" type="CPT-CommandID"/>
    <xs:element name="time" type="CPT-DateTime"/>
    <!-- time the change is sent -->
    <xs:element name="operator-changes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="operator-change" type="CCOperatorAssignmentChange"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vehicle-changes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="vehicle-change" type="CCVehicleAssignmentChange"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCcChangeAssignments" type="local:CcChangeAssignments" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcChangeAssignments/commandID
diagram
type tcip:CPT-CommandID
properties
isRef 0
content simple
source <xs:element name="commandID" type="CPT-CommandID"/>

element tcip:CcChangeAssignments/time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="time" type="CPT-DateTime"/>

element tcip:CcChangeAssignments/operator-changes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children operator-change
source <xs:element name="operator-changes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="operator-change" type="CCOperatorAssignmentChange"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

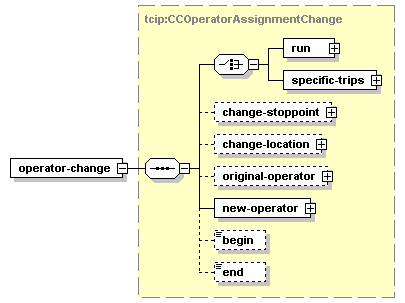

element tcip:CcChangeAssignments/operator-changes/operator-change
diagram
type tcip:CCOperatorAssignmentChange
properties
isRef 0
content complex
children run specific-trips change-stoppoint change-location original-operator new-operator begin end
source <xs:element name="operator-change" type="CCOperatorAssignmentChange"/>

element tcip:CcChangeAssignments/vehicle-changes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-change
source <xs:element name="vehicle-changes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="vehicle-change" type="CCVehicleAssignmentChange"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

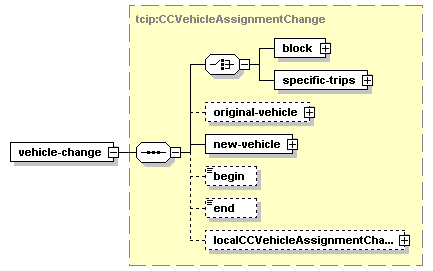

element tcip:CcChangeAssignments/vehicle-changes/vehicle-change
diagram
type tcip:CCVehicleAssignmentChange
properties
isRef 0
content complex
children block specific-trips original-vehicle new-vehicle begin end localCCVehicleAssignmentChange
source <xs:element name="vehicle-change" type="CCVehicleAssignmentChange"/>

element tcip:CcChangeAssignments/localCcChangeAssignments
diagram
type CcChangeAssignments
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcChangeAssignments" type="local:CcChangeAssignments" minOccurs="0"/>
