complexType atis:RequestStatus

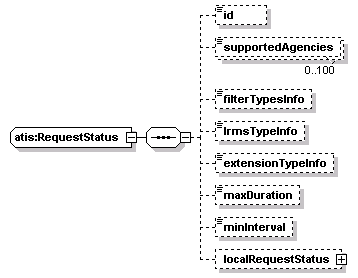

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	id supportedAgencies filterTypesInfo lrmsTypeInfo extensionTypeInfo maxDuration minInterval localRequestStatus
used by	element  atis:StatusBlock/relatedData/subscribe
source	<xs:complexType name="RequestStatus">   <xs:sequence>     <xs:element name="id" type="im:ReferenceID" minOccurs="0"/>     <!-- a ref id will be returned with a          sucessfull subscribe action. This value          is used to refer to the subscription thereafter -->     <xs:element name="supportedAgencies" type="tmdd:Organization-resource-identifier" minOccurs="0" maxOccurs="100"/>     <!-- returns list of agencies -->     <xs:element name="filterTypesInfo" type="URL-Link" minOccurs="0"/>     <!-- returns information on the types          of event which one can filter on -->     <xs:element name="lrmsTypeInfo" type="URL-Link" minOccurs="0"/>     <!-- returns information on the LRMS          profiles supported or the type of error          found in the request -->     <xs:element name="extensionTypeInfo" type="URL-Link" minOccurs="0"/>     <!-- returns information on any locally          defined filters for the user -->     <xs:element name="maxDuration" type="TimeInterval" minOccurs="0"/>     <!-- returns the max allowed subscription time -->     <xs:element name="minInterval" type="TimeInterval" minOccurs="0"/>     <!-- returns min update interval supported -->     <xs:element name="localRequestStatus" type="local:RequestStatus" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:RequestStatus/id

diagram
type	ReferenceID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="id" type="im:ReferenceID" minOccurs="0"/>

element atis:RequestStatus/supportedAgencies

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  100 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="supportedAgencies" type="tmdd:Organization-resource-identifier" minOccurs="0" maxOccurs="100"/>

element atis:RequestStatus/filterTypesInfo

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="filterTypesInfo" type="URL-Link" minOccurs="0"/>

element atis:RequestStatus/lrmsTypeInfo

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="lrmsTypeInfo" type="URL-Link" minOccurs="0"/>

element atis:RequestStatus/extensionTypeInfo

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="extensionTypeInfo" type="URL-Link" minOccurs="0"/>

element atis:RequestStatus/maxDuration

diagram
type	atis:TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="maxDuration" type="TimeInterval" minOccurs="0"/>

element atis:RequestStatus/minInterval

diagram
type	atis:TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="minInterval" type="TimeInterval" minOccurs="0"/>

element atis:RequestStatus/localRequestStatus

diagram
type	RequestStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localRequestStatus" type="local:RequestStatus" minOccurs="0"/>
