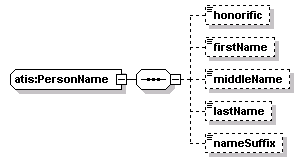

complexType atis:PersonName

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	honorific firstName middleName lastName nameSuffix
used by	element  atis:ContactSetting/person
source	<xs:complexType name="PersonName">   <xs:sequence>     <xs:element name="honorific" type="HonorificName" minOccurs="0"/>     <xs:element name="firstName" type="FirstName" minOccurs="0"/>     <xs:element name="middleName" type="MiddleName" minOccurs="0"/>     <xs:element name="lastName" type="LastName" minOccurs="0"/>     <xs:element name="nameSuffix" type="NameSuffix" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:PersonName/honorific

diagram
type	atis:HonorificName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="honorific" type="HonorificName" minOccurs="0"/>

element atis:PersonName/firstName

diagram
type	atis:FirstName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  25
source	<xs:element name="firstName" type="FirstName" minOccurs="0"/>

element atis:PersonName/middleName

diagram
type	atis:MiddleName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="middleName" type="MiddleName" minOccurs="0"/>

element atis:PersonName/lastName

diagram
type	atis:LastName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  25
source	<xs:element name="lastName" type="LastName" minOccurs="0"/>

element atis:PersonName/nameSuffix

diagram
type	atis:NameSuffix
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="nameSuffix" type="NameSuffix" minOccurs="0"/>
