complexType atis:ParkingSpaceRequest

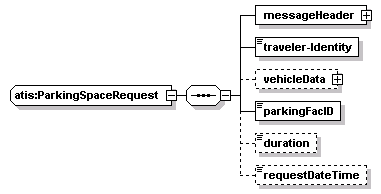

diagram
namespace http://www.ATIS-Draft-03-00-79
children messageHeader traveler-Identity vehicleData parkingFacID duration requestDateTime
used by
element atis:parkingSpaceRequest
source <xs:complexType name="ParkingSpaceRequest">
  <xs:sequence>
    <xs:element name="messageHeader" type="MessageHeader"/>
    <xs:element name="traveler-Identity" type="Traveler-Identity"/>
    <xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>
    <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>
    <xs:element name="duration" type="TimeInterval" minOccurs="0"/>
    <xs:element name="requestDateTime" type="DateTimePair" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element atis:ParkingSpaceRequest/messageHeader

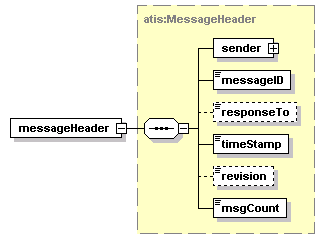

diagram
type atis:MessageHeader
properties
isRef 0
content complex
children sender messageID responseTo timeStamp revision msgCount
source <xs:element name="messageHeader" type="MessageHeader"/>

element atis:ParkingSpaceRequest/traveler-Identity
diagram
type atis:Traveler-Identity
properties
isRef 0
content simple
facets
minLength 1
maxLength 12
source <xs:element name="traveler-Identity" type="Traveler-Identity"/>

element atis:ParkingSpaceRequest/vehicleData

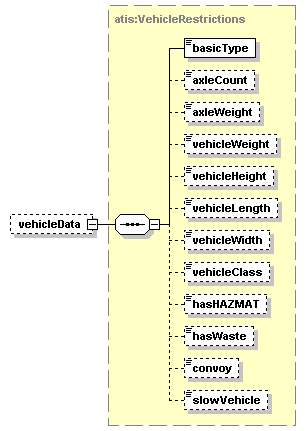

diagram
type atis:VehicleRestrictions
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children basicType axleCount axleWeight vehicleWeight vehicleHeight vehicleLength vehicleWidth vehicleClass hasHAZMAT hasWaste convoy slowVehicle
source <xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>

element atis:ParkingSpaceRequest/parkingFacID
diagram
type tcip:PI-ParkingFacID
properties
isRef 0
content simple
source <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>

element atis:ParkingSpaceRequest/duration
diagram
type atis:TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="duration" type="TimeInterval" minOccurs="0"/>

element atis:ParkingSpaceRequest/requestDateTime
diagram
type atis:DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="requestDateTime" type="DateTimePair" minOccurs="0"/>
