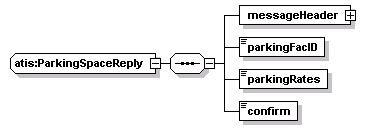

complexType atis:ParkingSpaceReply

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader parkingFacID parkingRates confirm
used by	element  atis:parkingSpaceReply
source	<xs:complexType name="ParkingSpaceReply">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>     <!-- the lot in queston -->     <xs:element name="parkingRates" type="tcip:PI-ParkingRates"/>     <!-- the rates for this lot -->     <xs:element name="confirm">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

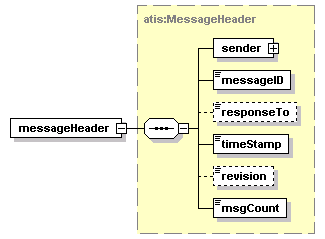

element atis:ParkingSpaceReply/messageHeader

diagram
type	atis:MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element atis:ParkingSpaceReply/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 content  simple
source	<xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>

element atis:ParkingSpaceReply/parkingRates

diagram
type	tcip:PI-ParkingRates
properties	isRef  0 content  simple
facets	minLength  1 maxLength  100000
source	<xs:element name="parkingRates" type="tcip:PI-ParkingRates"/>

element atis:ParkingSpaceReply/confirm

diagram
type	restriction of xs:boolean
properties	isRef  0 content  simple
source	<xs:element name="confirm">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>
