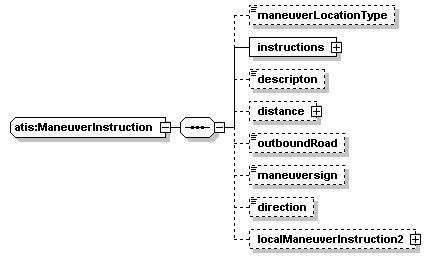

complexType atis:ManeuverInstruction

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	maneuverLocationType instructions descripton distance outboundRoad maneuversign direction localManeuverInstruction2
used by	elements  tcip:PiDirections/atis-directions/atis-direction tcip:PIParkingFacility/directions/direction tcip:SpRouteGeoTrace/response/drive-directions/drive-direction tcip:SCHPatternSegment/drive-directions/drive-direction tcip:SPIntDirection/instruction atis:Segment/actionRequired/maneuverInstructions tcip:SpRouteGeoTrace/response/walking-directions/walking-direction
source	<xs:complexType name="ManeuverInstruction">   <xs:sequence>     <xs:element name="maneuverLocationType" type="ManeuverLocationType" minOccurs="0"/>     <xs:element name="instructions">       <xs:complexType>         <xs:sequence maxOccurs="3">           <xs:element name="instruction">             <xs:complexType>               <xs:choice>                 <xs:element name="turn" type="TurnType"/>                 <xs:element name="merge" type="TurnType"/>                 <xs:element name="branch" type="TurnType"/>                 <xs:element name="exit" type="TurnType"/>                 <xs:element name="continue" type="TurnType"/>                 <xs:element name="payToll" type="Cost"/>                 <xs:element name="takeElevator" type="VerticalType"/>                 <xs:element name="takeEscalator" type="VerticalType"/>                 <xs:element name="takeStairs" type="VerticalType"/>                 <xs:element name="board" type="Mode"/>                 <xs:element name="alight" type="Mode"/>                 <xs:element name="getTransfer" type="tcip:CPTStoppointIden"/>                 <xs:element name="localManeuverInstruction" type="local:ManeuverInstruction" minOccurs="0"/>               </xs:choice>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="descripton" type="Freetext" minOccurs="0"/>     <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="outboundRoad" type="Freetext" minOccurs="0"/>     <xs:element name="maneuversign" type="Freetext" minOccurs="0"/>     <xs:element name="direction" type="CompassDirection" minOccurs="0"/>     <xs:element name="localManeuverInstruction2" type="local:ManeuverInstruction2" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:ManeuverInstruction/maneuverLocationType

diagram
type	atis:ManeuverLocationType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="maneuverLocationType" type="ManeuverLocationType" minOccurs="0"/>

element atis:ManeuverInstruction/instructions

diagram
properties	isRef  0 content  complex
children	instruction
source	<xs:element name="instructions">   <xs:complexType>     <xs:sequence maxOccurs="3">       <xs:element name="instruction">         <xs:complexType>           <xs:choice>             <xs:element name="turn" type="TurnType"/>             <xs:element name="merge" type="TurnType"/>             <xs:element name="branch" type="TurnType"/>             <xs:element name="exit" type="TurnType"/>             <xs:element name="continue" type="TurnType"/>             <xs:element name="payToll" type="Cost"/>             <xs:element name="takeElevator" type="VerticalType"/>             <xs:element name="takeEscalator" type="VerticalType"/>             <xs:element name="takeStairs" type="VerticalType"/>             <xs:element name="board" type="Mode"/>             <xs:element name="alight" type="Mode"/>             <xs:element name="getTransfer" type="tcip:CPTStoppointIden"/>             <xs:element name="localManeuverInstruction" type="local:ManeuverInstruction" minOccurs="0"/>           </xs:choice>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

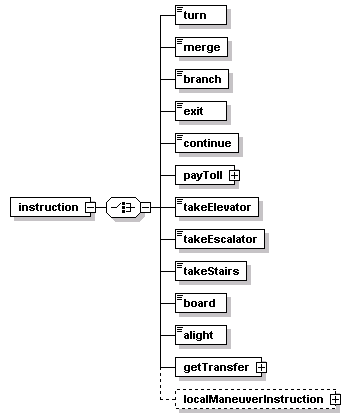

element atis:ManeuverInstruction/instructions/instruction

diagram
properties	isRef  0 content  complex
children	turn merge branch exit continue payToll takeElevator takeEscalator takeStairs board alight getTransfer localManeuverInstruction
source	<xs:element name="instruction">   <xs:complexType>     <xs:choice>       <xs:element name="turn" type="TurnType"/>       <xs:element name="merge" type="TurnType"/>       <xs:element name="branch" type="TurnType"/>       <xs:element name="exit" type="TurnType"/>       <xs:element name="continue" type="TurnType"/>       <xs:element name="payToll" type="Cost"/>       <xs:element name="takeElevator" type="VerticalType"/>       <xs:element name="takeEscalator" type="VerticalType"/>       <xs:element name="takeStairs" type="VerticalType"/>       <xs:element name="board" type="Mode"/>       <xs:element name="alight" type="Mode"/>       <xs:element name="getTransfer" type="tcip:CPTStoppointIden"/>       <xs:element name="localManeuverInstruction" type="local:ManeuverInstruction" minOccurs="0"/>     </xs:choice>   </xs:complexType> </xs:element>

element atis:ManeuverInstruction/instructions/instruction/turn

diagram
type	atis:TurnType
properties	isRef  0 content  simple
source	<xs:element name="turn" type="TurnType"/>

element atis:ManeuverInstruction/instructions/instruction/merge

diagram
type	atis:TurnType
properties	isRef  0 content  simple
source	<xs:element name="merge" type="TurnType"/>

element atis:ManeuverInstruction/instructions/instruction/branch

diagram
type	atis:TurnType
properties	isRef  0 content  simple
source	<xs:element name="branch" type="TurnType"/>

element atis:ManeuverInstruction/instructions/instruction/exit

diagram
type	atis:TurnType
properties	isRef  0 content  simple
source	<xs:element name="exit" type="TurnType"/>

element atis:ManeuverInstruction/instructions/instruction/continue

diagram
type	atis:TurnType
properties	isRef  0 content  simple
source	<xs:element name="continue" type="TurnType"/>

element atis:ManeuverInstruction/instructions/instruction/payToll

diagram
type	atis:Cost
properties	isRef  0 content  complex
children	value currencyUnit
source	<xs:element name="payToll" type="Cost"/>

element atis:ManeuverInstruction/instructions/instruction/takeElevator

diagram
type	atis:VerticalType
properties	isRef  0 content  simple
source	<xs:element name="takeElevator" type="VerticalType"/>

element atis:ManeuverInstruction/instructions/instruction/takeEscalator

diagram
type	atis:VerticalType
properties	isRef  0 content  simple
source	<xs:element name="takeEscalator" type="VerticalType"/>

element atis:ManeuverInstruction/instructions/instruction/takeStairs

diagram
type	atis:VerticalType
properties	isRef  0 content  simple
source	<xs:element name="takeStairs" type="VerticalType"/>

element atis:ManeuverInstruction/instructions/instruction/board

diagram
type	atis:Mode
properties	isRef  0 content  simple
source	<xs:element name="board" type="Mode"/>

element atis:ManeuverInstruction/instructions/instruction/alight

diagram
type	atis:Mode
properties	isRef  0 content  simple
source	<xs:element name="alight" type="Mode"/>

element atis:ManeuverInstruction/instructions/instruction/getTransfer

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="getTransfer" type="tcip:CPTStoppointIden"/>

element atis:ManeuverInstruction/instructions/instruction/localManeuverInstruction

diagram
type	ManeuverInstruction
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localManeuverInstruction" type="local:ManeuverInstruction" minOccurs="0"/>

element atis:ManeuverInstruction/descripton

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="descripton" type="Freetext" minOccurs="0"/>

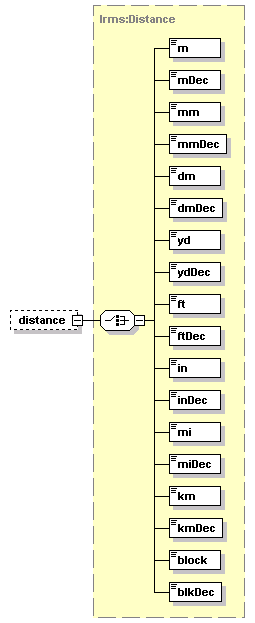

element atis:ManeuverInstruction/distance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="distance" type="lrms:Distance" minOccurs="0"/>

element atis:ManeuverInstruction/outboundRoad

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="outboundRoad" type="Freetext" minOccurs="0"/>

element atis:ManeuverInstruction/maneuversign

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="maneuversign" type="Freetext" minOccurs="0"/>

element atis:ManeuverInstruction/direction

diagram
type	atis:CompassDirection
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="CompassDirection" minOccurs="0"/>

element atis:ManeuverInstruction/localManeuverInstruction2

diagram
type	ManeuverInstruction2
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localManeuverInstruction2" type="local:ManeuverInstruction2" minOccurs="0"/>
