complexType atis:LocationPoint

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	lat long vertical radius
used by	element  atis:WeatherInformation/lat-long
source	<xs:complexType name="LocationPoint">   <xs:sequence>     <xs:element name="lat" type="lrms:Latitude"/>     <xs:element name="long" type="lrms:Longitude"/>     <xs:element name="vertical" type="Elevation" minOccurs="0"/>     <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:LocationPoint/lat

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="lat" type="lrms:Latitude"/>

element atis:LocationPoint/long

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="long" type="lrms:Longitude"/>

element atis:LocationPoint/vertical

diagram
type	atis:Elevation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  100
source	<xs:element name="vertical" type="Elevation" minOccurs="0"/>

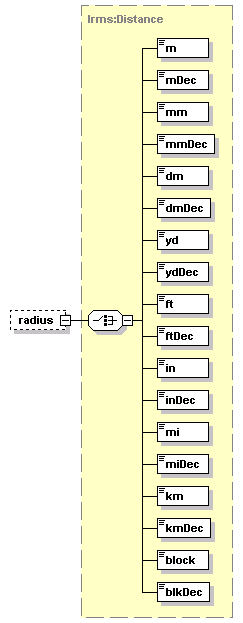

element atis:LocationPoint/radius

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="radius" type="lrms:Distance" minOccurs="0"/>
