complexType atis:InformationRequestType

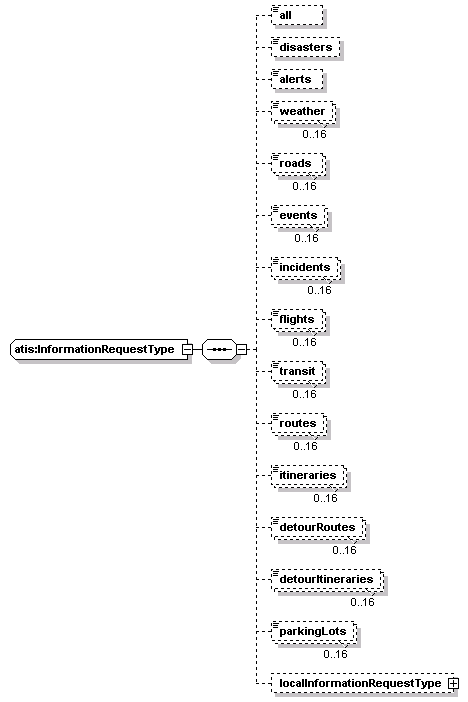

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	all disasters alerts weather roads events incidents flights transit routes itineraries detourRoutes detourItineraries parkingLots localInformationRequestType
used by	elements  RequestInformation/filter/dataTypes atis:InformationRequest/filter/dataTypes
source	<xs:complexType name="InformationRequestType">   <xs:sequence>     <xs:element name="all" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <xs:element name="disasters" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- both man made and natural -->     <xs:element name="alerts" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- all types of alert messages including          systems status and public safety -->     <xs:element name="weather" type="WeatherTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="roads" type="RoadTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="events" type="EventTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="incidents" type="EventTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="flights" type="FlightTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="transit" type="TransitTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="routes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="itineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="detourRoutes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="detourItineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="parkingLots" type="ParkingTypes" minOccurs="0" maxOccurs="16"/>     <xs:element name="localInformationRequestType" type="local:InformationRequestType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:InformationRequestType/all

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="all" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element atis:InformationRequestType/disasters

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disasters" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element atis:InformationRequestType/alerts

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="alerts" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element atis:InformationRequestType/weather

diagram
type	atis:WeatherTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="weather" type="WeatherTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/roads

diagram
type	atis:RoadTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="roads" type="RoadTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/events

diagram
type	atis:EventTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="events" type="EventTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/incidents

diagram
type	atis:EventTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="incidents" type="EventTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/flights

diagram
type	atis:FlightTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="flights" type="FlightTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/transit

diagram
type	atis:TransitTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="transit" type="TransitTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/routes

diagram
type	atis:RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="routes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/itineraries

diagram
type	atis:RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="itineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/detourRoutes

diagram
type	atis:RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="detourRoutes" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/detourItineraries

diagram
type	atis:RouteTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="detourItineraries" type="RouteTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/parkingLots

diagram
type	atis:ParkingTypes
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="parkingLots" type="ParkingTypes" minOccurs="0" maxOccurs="16"/>

element atis:InformationRequestType/localInformationRequestType

diagram
type	InformationRequestType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localInformationRequestType" type="local:InformationRequestType" minOccurs="0"/>
