complexType atis:DirectoryDetailRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	identity locationType
used by	element  atis:directoryDetailRequest
source	<xs:complexType name="DirectoryDetailRequest">   <xs:sequence>     <xs:element name="identity" type="Identity"/>     <xs:element name="locationType" type="lrms:LocationReference"/>   </xs:sequence> </xs:complexType>

element atis:DirectoryDetailRequest/identity

diagram
type	atis:Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  9
source	<xs:element name="identity" type="Identity"/>

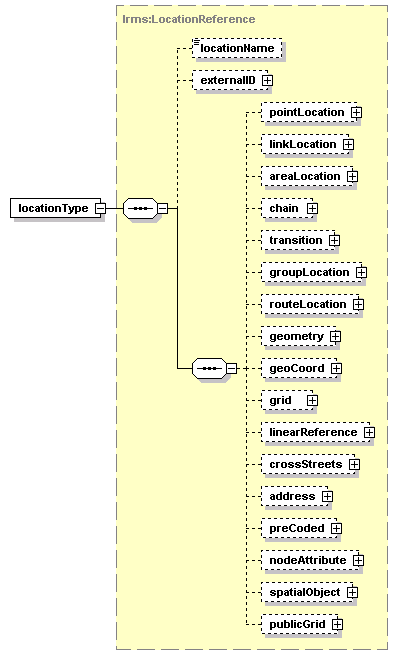

element atis:DirectoryDetailRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference"/>
