complexType atis:BoardingInstructions

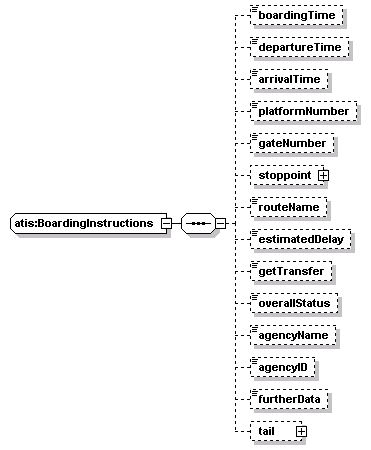

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	boardingTime departureTime arrivalTime platformNumber gateNumber stoppoint routeName estimatedDelay getTransfer overallStatus agencyName agencyID furtherData tail
used by	element  atis:Segment/boardingInstructions
source	<xs:complexType name="BoardingInstructions">   <xs:sequence>     <xs:element name="boardingTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="departureTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="arrivalTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="platformNumber" type="Flight-GateNumber" minOccurs="0"/>     <xs:element name="gateNumber" type="Flight-GateNumber" minOccurs="0"/>     <xs:element name="stoppoint" type="tcip:CPTStoppointIden" minOccurs="0"/>     <xs:element name="routeName" type="Name" minOccurs="0"/>     <xs:element name="estimatedDelay" type="TimeInterval" minOccurs="0"/>     <xs:element name="getTransfer" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>     <xs:element name="agencyName" type="Freetext" minOccurs="0"/>     <xs:element name="agencyID" type="tmdd:Organization-resource-identifier" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:BoardingInstructions/boardingTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="boardingTime" type="DateTimePair" minOccurs="0"/>

element atis:BoardingInstructions/departureTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="departureTime" type="DateTimePair" minOccurs="0"/>

element atis:BoardingInstructions/arrivalTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="arrivalTime" type="DateTimePair" minOccurs="0"/>

element atis:BoardingInstructions/platformNumber

diagram
type	atis:Flight-GateNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  6
source	<xs:element name="platformNumber" type="Flight-GateNumber" minOccurs="0"/>

element atis:BoardingInstructions/gateNumber

diagram
type	atis:Flight-GateNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  6
source	<xs:element name="gateNumber" type="Flight-GateNumber" minOccurs="0"/>

element atis:BoardingInstructions/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="tcip:CPTStoppointIden" minOccurs="0"/>

element atis:BoardingInstructions/routeName

diagram
type	atis:Name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="routeName" type="Name" minOccurs="0"/>

element atis:BoardingInstructions/estimatedDelay

diagram
type	atis:TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="estimatedDelay" type="TimeInterval" minOccurs="0"/>

element atis:BoardingInstructions/getTransfer

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="getTransfer" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element atis:BoardingInstructions/overallStatus

diagram
type	itis:DelayStatusCancellation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>

element atis:BoardingInstructions/agencyName

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="agencyName" type="Freetext" minOccurs="0"/>

element atis:BoardingInstructions/agencyID

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="agencyID" type="tmdd:Organization-resource-identifier" minOccurs="0"/>

element atis:BoardingInstructions/furtherData

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element atis:BoardingInstructions/tail

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>
