complexType lrms:PublicGridUSNG

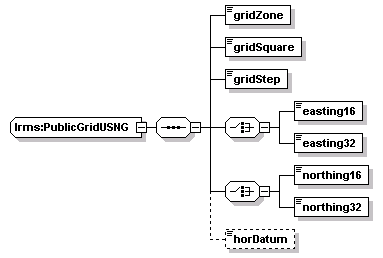

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	gridZone gridSquare gridStep easting16 easting32 northing16 northing32 horDatum
used by	element  lrms:PublicGrid/usng
source	<xs:complexType name="PublicGridUSNG">   <xs:sequence>     <xs:element name="gridZone" type="PublicGridGridZone"/>     <xs:element name="gridSquare" type="PublicGridGridSquare"/>     <xs:element name="gridStep" type="PublicGridGridStep"/>     <xs:choice>       <xs:element name="easting16" type="PublicGridEasting16"/>       <xs:element name="easting32" type="PublicGridEasting32"/>     </xs:choice>     <xs:choice>       <xs:element name="northing16" type="PublicGridNorthing16"/>       <xs:element name="northing32" type="PublicGridNorthing32"/>     </xs:choice>     <xs:element name="horDatum" type="HorizontalDatum" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:PublicGridUSNG/gridZone

diagram
type	lrms:PublicGridGridZone
properties	isRef  0 content  simple
facets	length  3
source	<xs:element name="gridZone" type="PublicGridGridZone"/>

element lrms:PublicGridUSNG/gridSquare

diagram
type	lrms:PublicGridGridSquare
properties	isRef  0 content  simple
facets	length  2
source	<xs:element name="gridSquare" type="PublicGridGridSquare"/>

element lrms:PublicGridUSNG/gridStep

diagram
type	lrms:PublicGridGridStep
properties	isRef  0 content  simple
facets	minInclusive  1 maxInclusive  +10000
source	<xs:element name="gridStep" type="PublicGridGridStep"/>

element lrms:PublicGridUSNG/easting16

diagram
type	lrms:PublicGridEasting16
properties	isRef  0 content  simple
source	<xs:element name="easting16" type="PublicGridEasting16"/>

element lrms:PublicGridUSNG/easting32

diagram
type	lrms:PublicGridEasting32
properties	isRef  0 content  simple
facets	maxInclusive  1000000
source	<xs:element name="easting32" type="PublicGridEasting32"/>

element lrms:PublicGridUSNG/northing16

diagram
type	lrms:PublicGridNorthing16
properties	isRef  0 content  simple
source	<xs:element name="northing16" type="PublicGridNorthing16"/>

element lrms:PublicGridUSNG/northing32

diagram
type	lrms:PublicGridNorthing32
properties	isRef  0 content  simple
facets	maxInclusive  1000000
source	<xs:element name="northing32" type="PublicGridNorthing32"/>

element lrms:PublicGridUSNG/horDatum

diagram
type	lrms:HorizontalDatum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="horDatum" type="HorizontalDatum" minOccurs="0"/>
