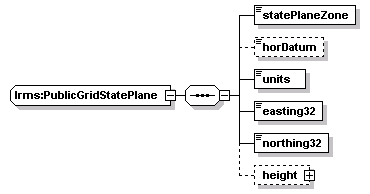

complexType lrms:PublicGridStatePlane
diagram
namespace http://www.LRMS-Adopted-02-00-00
children statePlaneZone horDatum units easting32 northing32 height
used by
element lrms:PublicGrid/statePlane
source <xs:complexType name="PublicGridStatePlane">
  <xs:sequence>
    <xs:element name="statePlaneZone" type="PublicGridStatePlaneZone"/>
    <xs:element name="horDatum" type="HorizontalDatum" minOccurs="0"/>
    <xs:element name="units">
      <xs:simpleType>
        <xs:union>
          <xs:simpleType>
            <xs:restriction base="xs:unsignedInt">
              <xs:minInclusive value="0"/>
              <xs:maxInclusive value="1"/>
            </xs:restriction>
          </xs:simpleType>
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="USSurveyFoot"/>
              <xs:enumeration value="meters"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:union>
      </xs:simpleType>
    </xs:element>
    <xs:element name="easting32">
      <xs:simpleType>
        <xs:restriction base="xs:float"/>
      </xs:simpleType>
    </xs:element>
    <xs:element name="northing32">
      <xs:simpleType>
        <xs:restriction base="xs:float"/>
      </xs:simpleType>
    </xs:element>
    <xs:element name="height" type="Height" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element lrms:PublicGridStatePlane/statePlaneZone
diagram
type lrms:PublicGridStatePlaneZone
properties
isRef 0
content simple
source <xs:element name="statePlaneZone" type="PublicGridStatePlaneZone"/>

element lrms:PublicGridStatePlane/horDatum
diagram
type lrms:HorizontalDatum
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="horDatum" type="HorizontalDatum" minOccurs="0"/>

element lrms:PublicGridStatePlane/units
diagram
type union of (restriction of xs:unsignedInt, restriction of xs:string)
properties
isRef 0
content simple
source <xs:element name="units">
  <xs:simpleType>
    <xs:union>
      <xs:simpleType>
        <xs:restriction base="xs:unsignedInt">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="1"/>
        </xs:restriction>
      </xs:simpleType>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="USSurveyFoot"/>
          <xs:enumeration value="meters"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:union>
  </xs:simpleType>
</xs:element>

element lrms:PublicGridStatePlane/easting32
diagram
type restriction of xs:float
properties
isRef 0
content simple
source <xs:element name="easting32">
  <xs:simpleType>
    <xs:restriction base="xs:float"/>
  </xs:simpleType>
</xs:element>

element lrms:PublicGridStatePlane/northing32
diagram
type restriction of xs:float
properties
isRef 0
content simple
source <xs:element name="northing32">
  <xs:simpleType>
    <xs:restriction base="xs:float"/>
  </xs:simpleType>
</xs:element>

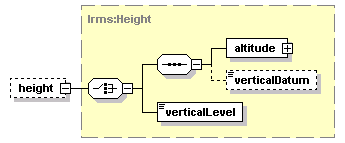

element lrms:PublicGridStatePlane/height
diagram
type lrms:Height
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children altitude verticalDatum verticalLevel
source <xs:element name="height" type="Height" minOccurs="0"/>
