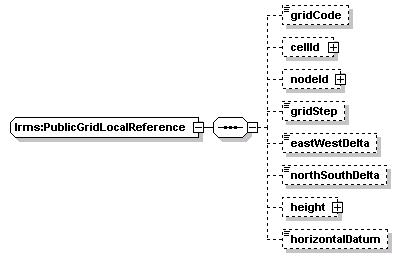

complexType lrms:PublicGridLocalReference

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	gridCode cellId nodeId gridStep eastWestDelta northSouthDelta height horizontalDatum
used by	element  lrms:PublicGrid/localReference
source	<xs:complexType name="PublicGridLocalReference">   <xs:sequence>     <xs:element name="gridCode" type="String-index64" minOccurs="0"/>     <xs:element name="cellId" type="IdType" minOccurs="0"/>     <xs:element name="nodeId" type="IdType" minOccurs="0"/>     <xs:element name="gridStep" type="PublicGridGridStep" minOccurs="0"/>     <xs:element name="eastWestDelta" type="PublicGridEastWestDelta" minOccurs="0"/>     <xs:element name="northSouthDelta" type="PublicGridNorthSouthDelta" minOccurs="0"/>     <xs:element name="height" type="Height" minOccurs="0"/>     <xs:element name="horizontalDatum" type="HorizontalDatum" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:PublicGridLocalReference/gridCode

diagram
type	lrms:String-index64
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="gridCode" type="String-index64" minOccurs="0"/>

element lrms:PublicGridLocalReference/cellId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="cellId" type="IdType" minOccurs="0"/>

element lrms:PublicGridLocalReference/nodeId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="nodeId" type="IdType" minOccurs="0"/>

element lrms:PublicGridLocalReference/gridStep

diagram
type	lrms:PublicGridGridStep
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1 maxInclusive  +10000
source	<xs:element name="gridStep" type="PublicGridGridStep" minOccurs="0"/>

element lrms:PublicGridLocalReference/eastWestDelta

diagram
type	lrms:PublicGridEastWestDelta
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -10000 maxInclusive  +10000
source	<xs:element name="eastWestDelta" type="PublicGridEastWestDelta" minOccurs="0"/>

element lrms:PublicGridLocalReference/northSouthDelta

diagram
type	lrms:PublicGridNorthSouthDelta
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -10000 maxInclusive  +10000
source	<xs:element name="northSouthDelta" type="PublicGridNorthSouthDelta" minOccurs="0"/>

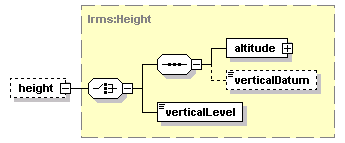

element lrms:PublicGridLocalReference/height

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="height" type="Height" minOccurs="0"/>

element lrms:PublicGridLocalReference/horizontalDatum

diagram
type	lrms:HorizontalDatum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="horizontalDatum" type="HorizontalDatum" minOccurs="0"/>
