complexType dsrc:GenericTransferMsg

diagram
namespace	http://www.DSRC-Draft-02-00-15

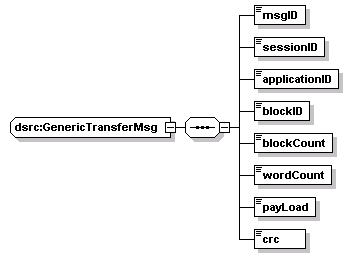

children	msgID sessionID applicationID blockID blockCount wordCount payLoad crc
used by	element  dsrc:genericTransferMsg
source	<xs:complexType name="GenericTransferMsg">   <xs:sequence>     <xs:element name="msgID" type="DSRCmsgID"/>     <!-- App ID value,  1 byte -->     <xs:element name="sessionID">       <xs:simpleType>         <xs:restriction base="xs:unsignedByte"/>       </xs:simpleType>     </xs:element>     <xs:element name="applicationID">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort"/>       </xs:simpleType>     </xs:element>     <xs:element name="blockID">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort"/>       </xs:simpleType>     </xs:element>     <!-- the block number which this is -->     <xs:element name="blockCount">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort"/>       </xs:simpleType>     </xs:element>     <!-- the number of blocks in total -->     <xs:element name="wordCount">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort"/>       </xs:simpleType>     </xs:element>     <!-- the number of bytes in this payload -->     <xs:element name="payLoad" type="PayloadData"/>     <!-- the payload data to be transferred -->     <xs:element name="crc">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort"/>       </xs:simpleType>     </xs:element>     <!-- a CRC,  if not provided by the framing -->   </xs:sequence> </xs:complexType>

element dsrc:GenericTransferMsg/msgID

diagram
type	dsrc:DSRCmsgID
properties	isRef  0 content  simple
source	<xs:element name="msgID" type="DSRCmsgID"/>

element dsrc:GenericTransferMsg/sessionID

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 content  simple
source	<xs:element name="sessionID">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte"/>   </xs:simpleType> </xs:element>

element dsrc:GenericTransferMsg/applicationID

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 content  simple
source	<xs:element name="applicationID">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort"/>   </xs:simpleType> </xs:element>

element dsrc:GenericTransferMsg/blockID

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 content  simple
source	<xs:element name="blockID">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort"/>   </xs:simpleType> </xs:element>

element dsrc:GenericTransferMsg/blockCount

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 content  simple
source	<xs:element name="blockCount">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort"/>   </xs:simpleType> </xs:element>

element dsrc:GenericTransferMsg/wordCount

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 content  simple
source	<xs:element name="wordCount">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort"/>   </xs:simpleType> </xs:element>

element dsrc:GenericTransferMsg/payLoad

diagram
type	dsrc:PayloadData
properties	isRef  0 content  complex
facets	minLength  2 maxLength  2731
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="payLoad" type="PayloadData"/>

element dsrc:GenericTransferMsg/crc

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 content  simple
source	<xs:element name="crc">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort"/>   </xs:simpleType> </xs:element>
