complexType dsrc:CommonSafetyRequest

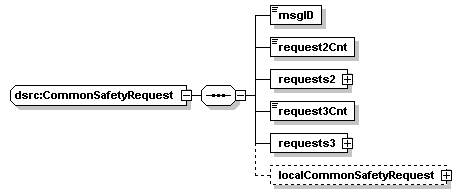

diagram
namespace http://www.DSRC-Draft-02-00-15
children msgID request2Cnt requests2 request3Cnt requests3 localCommonSafetyRequest
used by
element dsrc:commonSafetyRequest
source <xs:complexType name="CommonSafetyRequest">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <!-- App ID value,  1 byte -->
    <xs:element name="request2Cnt">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- 1 byte -->
    <xs:element name="requests2">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="requests2-item" type="StdTagList"/>
          <!-- Part II items -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="request3Cnt">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- 1 byte -->
    <xs:element name="requests3">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="requests3-item" type="TwoByteTagList"/>
          <!-- Part III items -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCommonSafetyRequest" type="local:CommonSafetyRequest" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dsrc:CommonSafetyRequest/msgID
diagram
type dsrc:DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element dsrc:CommonSafetyRequest/request2Cnt
diagram
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 32
source <xs:element name="request2Cnt">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dsrc:CommonSafetyRequest/requests2
diagram
properties
isRef 0
content complex
children requests2-item
source <xs:element name="requests2">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="requests2-item" type="StdTagList"/>
      <!-- Part II items -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element dsrc:CommonSafetyRequest/requests2/requests2-item
diagram
type dsrc:StdTagList
properties
isRef 0
content simple
source <xs:element name="requests2-item" type="StdTagList"/>

element dsrc:CommonSafetyRequest/request3Cnt
diagram
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 32
source <xs:element name="request3Cnt">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dsrc:CommonSafetyRequest/requests3
diagram
properties
isRef 0
content complex
children requests3-item
source <xs:element name="requests3">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="requests3-item" type="TwoByteTagList"/>
      <!-- Part III items -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element dsrc:CommonSafetyRequest/requests3/requests3-item
diagram
type dsrc:TwoByteTagList
properties
isRef 0
content simple
source <xs:element name="requests3-item" type="TwoByteTagList"/>

element dsrc:CommonSafetyRequest/localCommonSafetyRequest
diagram
type CommonSafetyRequest
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCommonSafetyRequest" type="local:CommonSafetyRequest" minOccurs="0"/>
