complexType tcip:TSPTmsIntersectionParam

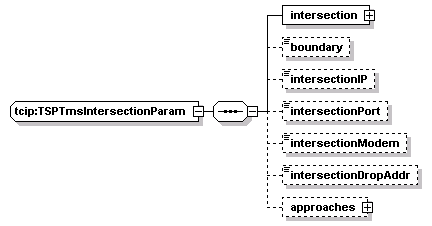

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	intersection boundary intersectionIP intersectionPort intersectionModem intersectionDropAddr approaches
used by	element  tcip:TSPPRGInputsCCEntry/intersectionParam
source	<xs:complexType name="TSPTmsIntersectionParam">   <xs:sequence>     <xs:element name="intersection" type="CPTIntersectionIden"/>     <xs:element name="boundary" type="TSP-BoundaryID" minOccurs="0"/>     <xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>     <xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>     <xs:element name="approaches" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25">           <xs:element name="approache" type="TSPTmsIntersectionApproach"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TSPTmsIntersectionParam/intersection

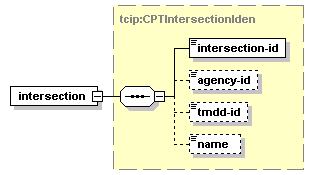

diagram
type	tcip:CPTIntersectionIden
properties	isRef  0 content  complex
children	intersection-id agency-id tmdd-id name
source	<xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:TSPTmsIntersectionParam/boundary

diagram
type	tcip:TSP-BoundaryID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="boundary" type="TSP-BoundaryID" minOccurs="0"/>

element tcip:TSPTmsIntersectionParam/intersectionIP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:TSPTmsIntersectionParam/intersectionPort

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:TSPTmsIntersectionParam/intersectionModem

diagram
type	tcip:TSP-ModemPhoneNum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>

element tcip:TSPTmsIntersectionParam/intersectionDropAddr

diagram
type	tcip:TSP-DropAddr
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>

element tcip:TSPTmsIntersectionParam/approaches

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	approache
source	<xs:element name="approaches" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25">       <xs:element name="approache" type="TSPTmsIntersectionApproach"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TSPTmsIntersectionParam/approaches/approache

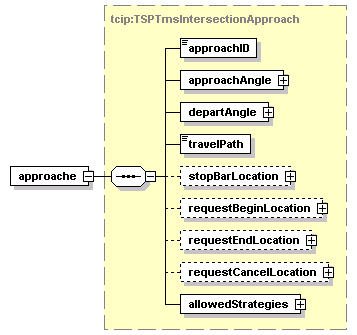

diagram
type	tcip:TSPTmsIntersectionApproach
properties	isRef  0 content  complex
children	approachID approachAngle departAngle travelPath stopBarLocation requestBeginLocation requestEndLocation requestCancelLocation allowedStrategies
source	<xs:element name="approache" type="TSPTmsIntersectionApproach"/>
