complexType tcip:TSPBoundaryEntry

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	boundaryID metadata boundaryPolygon
used by	element  tcip:TspBusinessRules/boundaries/boundary
source	<xs:complexType name="TSPBoundaryEntry">   <xs:sequence>     <xs:element name="boundaryID" type="TSP-BoundaryID"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="boundaryPolygon" type="SPPolygon"/>   </xs:sequence> </xs:complexType>

element tcip:TSPBoundaryEntry/boundaryID

diagram
type	tcip:TSP-BoundaryID
properties	isRef  0 content  simple
source	<xs:element name="boundaryID" type="TSP-BoundaryID"/>

element tcip:TSPBoundaryEntry/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

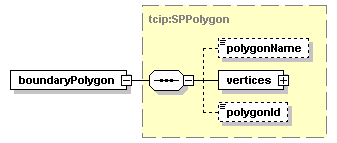

element tcip:TSPBoundaryEntry/boundaryPolygon

diagram
type	tcip:SPPolygon
properties	isRef  0 content  complex
children	polygonName vertices polygonId
source	<xs:element name="boundaryPolygon" type="SPPolygon"/>
