complexType tcip:SPSymbolPart

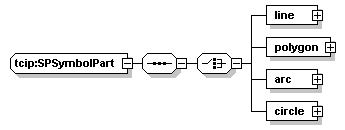

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	line polygon arc circle
used by	element  tcip:SPGeometricSymbol/parts/part
source	<xs:complexType name="SPSymbolPart">   <xs:sequence>     <xs:choice>       <xs:element name="line" type="SPNoDimLine"/>       <xs:element name="polygon" type="SPNoDimPolygon"/>       <xs:element name="arc" type="SPNoDimArc"/>       <xs:element name="circle" type="SPNoDimCircle"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element tcip:SPSymbolPart/line

diagram
type	tcip:SPNoDimLine
properties	isRef  0 content  complex
children	points
source	<xs:element name="line" type="SPNoDimLine"/>

element tcip:SPSymbolPart/polygon

diagram
type	tcip:SPNoDimPolygon
properties	isRef  0 content  complex
children	points fill
source	<xs:element name="polygon" type="SPNoDimPolygon"/>

element tcip:SPSymbolPart/arc

diagram
type	tcip:SPNoDimArc
properties	isRef  0 content  complex
children	center radius from to
source	<xs:element name="arc" type="SPNoDimArc"/>

element tcip:SPSymbolPart/circle

diagram
type	tcip:SPNoDimCircle
properties	isRef  0 content  complex
children	center radius fill
source	<xs:element name="circle" type="SPNoDimCircle"/>
