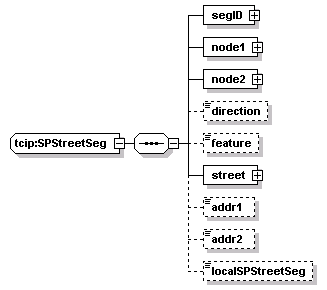

complexType tcip:SPStreetSeg

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	segID node1 node2 direction feature street addr1 addr2 localSPStreetSeg
used by	elements  tcip:CcGISFile/deleted-segments/deleted-segment tcip:SpGIS/deleted-segments/deleted-segment tcip:CcGISFile/segments/segment tcip:SpGIS/segments/segment tcip:SpGISPush/segments/segment
source	<xs:complexType name="SPStreetSeg">   <xs:sequence>     <xs:element name="segID" type="lrms:IdType"/>     <xs:element name="node1" type="lrms:IdType"/>     <xs:element name="node2" type="lrms:IdType"/>     <xs:element name="direction" type="SP-OneWay" minOccurs="0"/>     <!-- if absent 2-way -->     <xs:element name="feature" type="SP-FeatureID" minOccurs="0"/>     <xs:element name="street" type="lrms:IdType"/>     <xs:element name="addr1" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="addr2" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="localSPStreetSeg" type="local:SPStreetSeg" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPStreetSeg/segID

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="segID" type="lrms:IdType"/>

element tcip:SPStreetSeg/node1

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="node1" type="lrms:IdType"/>

element tcip:SPStreetSeg/node2

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="node2" type="lrms:IdType"/>

element tcip:SPStreetSeg/direction

diagram
type	tcip:SP-OneWay
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="SP-OneWay" minOccurs="0"/>

element tcip:SPStreetSeg/feature

diagram
type	tcip:SP-FeatureID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="feature" type="SP-FeatureID" minOccurs="0"/>

element tcip:SPStreetSeg/street

diagram
type	lrms:IdType
properties	isRef  0 content  complex
children	intOrAlpha databaseID
source	<xs:element name="street" type="lrms:IdType"/>

element tcip:SPStreetSeg/addr1

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="addr1" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:SPStreetSeg/addr2

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="addr2" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:SPStreetSeg/localSPStreetSeg

diagram
type	SPStreetSeg
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="localSPStreetSeg" type="local:SPStreetSeg" minOccurs="0"/>
