complexType tcip:ScpStatusControl

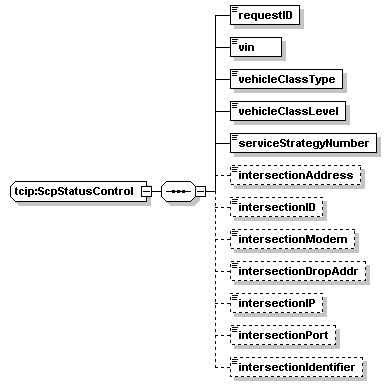

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	requestID vin vehicleClassType vehicleClassLevel serviceStrategyNumber intersectionAddress intersectionID intersectionModem intersectionDropAddr intersectionIP intersectionPort intersectionIdentifier
used by	element  tcip:scpStatusControl
source	<xs:complexType name="ScpStatusControl">   <xs:sequence>     <xs:element name="requestID" type="SCP-PriorityRequestID"/>     <!-- 1octet -->     <xs:element name="vin" type="CPT-VIN"/>     <!-- 17octets -->     <xs:element name="vehicleClassType" type="SCP-VehicleClassType"/>     <!-- 1octet -->     <xs:element name="vehicleClassLevel" type="SCP-VehicleClassLevel"/>     <!-- 1octet -->     <xs:element name="serviceStrategyNumber" type="SCP-PriorityStrategyNumber"/>     <!-- 1octet, -->     <xs:element name="intersectionAddress" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="intersectionID" type="TSP-TMS-IntersectionID" minOccurs="0"/>     <xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>     <xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>     <xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="intersectionIdentifier" type="tmdd:Intersection-identifier" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:ScpStatusControl/requestID

diagram
type	tcip:SCP-PriorityRequestID
properties	isRef  0 content  simple
source	<xs:element name="requestID" type="SCP-PriorityRequestID"/>

element tcip:ScpStatusControl/vin

diagram
type	tcip:CPT-VIN
properties	isRef  0 content  simple
facets	minLength  1 maxLength  17
source	<xs:element name="vin" type="CPT-VIN"/>

element tcip:ScpStatusControl/vehicleClassType

diagram
type	tcip:SCP-VehicleClassType
properties	isRef  0 content  simple
source	<xs:element name="vehicleClassType" type="SCP-VehicleClassType"/>

element tcip:ScpStatusControl/vehicleClassLevel

diagram
type	tcip:SCP-VehicleClassLevel
properties	isRef  0 content  simple
source	<xs:element name="vehicleClassLevel" type="SCP-VehicleClassLevel"/>

element tcip:ScpStatusControl/serviceStrategyNumber

diagram
type	tcip:SCP-PriorityStrategyNumber
properties	isRef  0 content  simple
source	<xs:element name="serviceStrategyNumber" type="SCP-PriorityStrategyNumber"/>

element tcip:ScpStatusControl/intersectionAddress

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionAddress" type="CPT-IP-Address" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionID

diagram
type	tcip:TSP-TMS-IntersectionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionID" type="TSP-TMS-IntersectionID" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionModem

diagram
type	tcip:TSP-ModemPhoneNum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="intersectionModem" type="TSP-ModemPhoneNum" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionDropAddr

diagram
type	tcip:TSP-DropAddr
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionDropAddr" type="TSP-DropAddr" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionIP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionIP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionPort

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionPort" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:ScpStatusControl/intersectionIdentifier

diagram
type	tmdd:Intersection-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="intersectionIdentifier" type="tmdd:Intersection-identifier" minOccurs="0"/>
