complexType tcip:SCHTrip

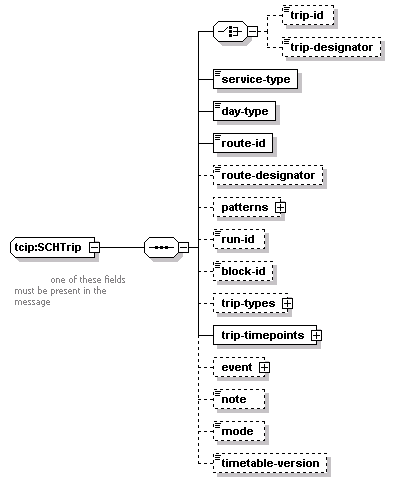

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	trip-id trip-designator service-type day-type route-id route-designator patterns run-id block-id trip-types trip-timepoints event note mode timetable-version
used by	element  tcip:PIPublishedScheduleTable/trips/trip
annotation	documentation                    one of these fields must be present in the message
source	<xs:complexType name="SCHTrip">   <xs:annotation>     <xs:documentation>                   one of these fields must be present in the message          </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:choice>       <xs:element name="trip-id" type="SCH-TripID" minOccurs="0"/>       <xs:element name="trip-designator" type="SCH-TripDesignator" minOccurs="0"/>     </xs:choice>     <xs:element name="service-type" type="SCH-ServiceType"/>     <xs:element name="day-type" type="SCH-DayType"/>     <xs:element name="route-id" type="SCH-RouteID"/>     <xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>     <xs:element name="patterns" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="pattern" type="SCH-PatternID"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="run-id" type="SCH-RunID" minOccurs="0"/>     <xs:element name="block-id" type="SCH-BlockID" minOccurs="0"/>     <xs:element name="trip-types" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="trip-type" type="SCH-TripType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trip-timepoints">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="trip-timepoint" type="SCHTripTimepoint"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="event" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="event-item" type="SCHEvent"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="note" type="SCH-NoteID" minOccurs="0"/>     <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>     <xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTrip/trip-id

diagram
type	tcip:SCH-TripID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="trip-id" type="SCH-TripID" minOccurs="0"/>

element tcip:SCHTrip/trip-designator

diagram
type	tcip:SCH-TripDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="trip-designator" type="SCH-TripDesignator" minOccurs="0"/>

element tcip:SCHTrip/service-type

diagram
type	tcip:SCH-ServiceType
properties	isRef  0 content  simple
source	<xs:element name="service-type" type="SCH-ServiceType"/>

element tcip:SCHTrip/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 content  simple
source	<xs:element name="day-type" type="SCH-DayType"/>

element tcip:SCHTrip/route-id

diagram
type	tcip:SCH-RouteID
properties	isRef  0 content  simple
source	<xs:element name="route-id" type="SCH-RouteID"/>

element tcip:SCHTrip/route-designator

diagram
type	tcip:SCH-RouteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>

element tcip:SCHTrip/patterns

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pattern
source	<xs:element name="patterns" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="pattern" type="SCH-PatternID"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTrip/patterns/pattern

diagram
type	tcip:SCH-PatternID
properties	isRef  0 content  simple
source	<xs:element name="pattern" type="SCH-PatternID"/>

element tcip:SCHTrip/run-id

diagram
type	tcip:SCH-RunID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="run-id" type="SCH-RunID" minOccurs="0"/>

element tcip:SCHTrip/block-id

diagram
type	tcip:SCH-BlockID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="block-id" type="SCH-BlockID" minOccurs="0"/>

element tcip:SCHTrip/trip-types

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	trip-type
source	<xs:element name="trip-types" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="trip-type" type="SCH-TripType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTrip/trip-types/trip-type

diagram
type	tcip:SCH-TripType
properties	isRef  0 content  simple
source	<xs:element name="trip-type" type="SCH-TripType"/>

element tcip:SCHTrip/trip-timepoints

diagram
properties	isRef  0 content  complex
children	trip-timepoint
source	<xs:element name="trip-timepoints">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="trip-timepoint" type="SCHTripTimepoint"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTrip/trip-timepoints/trip-timepoint

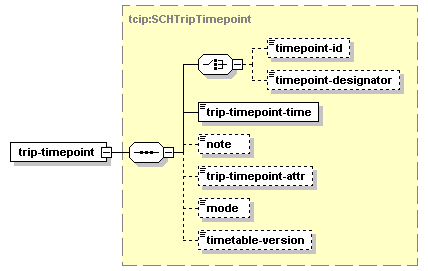

diagram
type	tcip:SCHTripTimepoint
properties	isRef  0 content  complex
children	timepoint-id timepoint-designator trip-timepoint-time note trip-timepoint-attr mode timetable-version
source	<xs:element name="trip-timepoint" type="SCHTripTimepoint"/>

element tcip:SCHTrip/event

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	event-item
source	<xs:element name="event" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="event-item" type="SCHEvent"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTrip/event/event-item

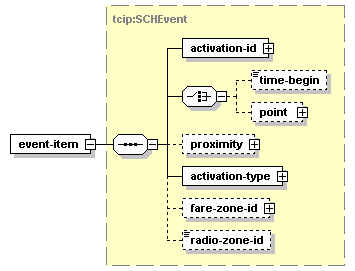

diagram
type	tcip:SCHEvent
properties	isRef  0 content  complex
children	activation-id time-begin point proximity activation-type fare-zone-id radio-zone-id
source	<xs:element name="event-item" type="SCHEvent"/>

element tcip:SCHTrip/note

diagram
type	tcip:SCH-NoteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="note" type="SCH-NoteID" minOccurs="0"/>

element tcip:SCHTrip/mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="mode" type="CPT-Mode" minOccurs="0"/>

element tcip:SCHTrip/timetable-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>
