complexType tcip:SCHTimeTableTripTP

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	timepoint-iden trip-timepoint-time note
used by	element  tcip:SCHTimeTableTrip/trip-timepoints/trip-timepoint
source	<xs:complexType name="SCHTimeTableTripTP">   <xs:sequence>     <xs:element name="timepoint-iden" type="SCHTimepointIden"/>     <xs:element name="trip-timepoint-time" type="SCH-Time"/>     <xs:element name="note" type="SCHNoteIden" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTimeTableTripTP/timepoint-iden

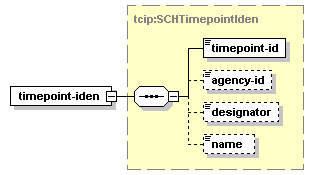

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint-iden" type="SCHTimepointIden"/>

element tcip:SCHTimeTableTripTP/trip-timepoint-time

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="trip-timepoint-time" type="SCH-Time"/>

element tcip:SCHTimeTableTripTP/note

diagram
type	tcip:SCHNoteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note-id agency-id note-des
source	<xs:element name="note" type="SCHNoteIden" minOccurs="0"/>
