complexType tcip:SCHTimeStoppoint
diagram
namespace http://www.TCIP-Adopted-03-00-01
children timepoint-id stoppoint offset
used by
elements tcip:PIServiceBulletin/skippedpoints/skippedpoint tcip:SpRouteGeoTrace/query/timestop-points/timestop-point tcip:SpRouteGeoTraceSub/query/timestop-points/timestop-point tcip:SCHPatternSegment/timeStoppoints/timeStoppoint tcip:CCDetourRecord/timeStopPointsSkipped/timeStopPointsSkipped-item
source <xs:complexType name="SCHTimeStoppoint">
  <xs:sequence>
    <xs:choice>
      <xs:element name="timepoint-id" type="SCHTimepointIden" minOccurs="0"/>
      <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>
    </xs:choice>
    <xs:element name="offset" type="lrms:Distance" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

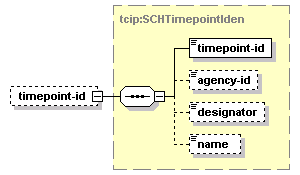

element tcip:SCHTimeStoppoint/timepoint-id
diagram
type tcip:SCHTimepointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children timepoint-id agency-id designator name
source <xs:element name="timepoint-id" type="SCHTimepointIden" minOccurs="0"/>

element tcip:SCHTimeStoppoint/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

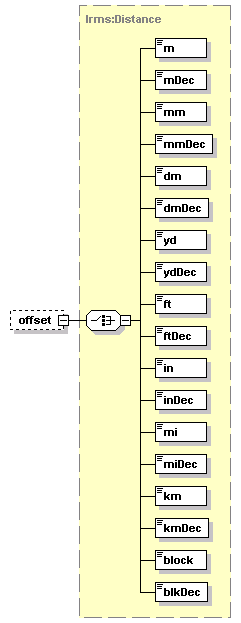

element tcip:SCHTimeStoppoint/offset
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="offset" type="lrms:Distance" minOccurs="0"/>
