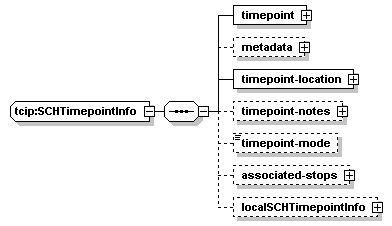

complexType tcip:SCHTimepointInfo

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	timepoint metadata timepoint-location timepoint-notes timepoint-mode associated-stops localSCHTimepointInfo
used by	elements  tcip:SchPushTimepoints/timepoints/timepoint tcip:SchTimepointList/timepoints/timepoint tcip:SchTimepointsFile/timepoints/timepoint
source	<xs:complexType name="SCHTimepointInfo">   <xs:sequence>     <xs:element name="timepoint" type="SCHTimepointIden"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="timepoint-location" type="lrms:GeoLocation"/>     <xs:element name="timepoint-notes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="timepoint-note" type="SCHNoteIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="timepoint-mode" type="CPT-Mode" minOccurs="0"/>     <xs:element name="associated-stops" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="associated-stop" type="CPTStoppointIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localSCHTimepointInfo" type="local:SCHTimepointInfo" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTimepointInfo/timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint" type="SCHTimepointIden"/>

element tcip:SCHTimepointInfo/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

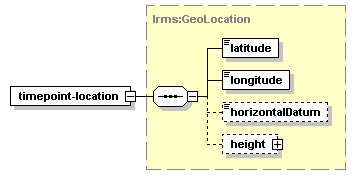

element tcip:SCHTimepointInfo/timepoint-location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="timepoint-location" type="lrms:GeoLocation"/>

element tcip:SCHTimepointInfo/timepoint-notes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-note
source	<xs:element name="timepoint-notes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="timepoint-note" type="SCHNoteIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

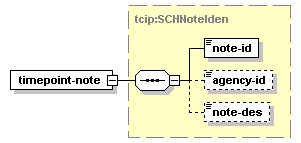

element tcip:SCHTimepointInfo/timepoint-notes/timepoint-note

diagram
type	tcip:SCHNoteIden
properties	isRef  0 content  complex
children	note-id agency-id note-des
source	<xs:element name="timepoint-note" type="SCHNoteIden"/>

element tcip:SCHTimepointInfo/timepoint-mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="timepoint-mode" type="CPT-Mode" minOccurs="0"/>

element tcip:SCHTimepointInfo/associated-stops

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	associated-stop
source	<xs:element name="associated-stops" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="associated-stop" type="CPTStoppointIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

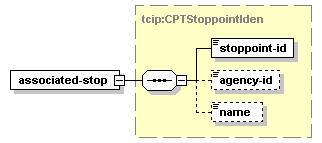

element tcip:SCHTimepointInfo/associated-stops/associated-stop

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="associated-stop" type="CPTStoppointIden"/>

element tcip:SCHTimepointInfo/localSCHTimepointInfo

diagram
type	SCHTimepointInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localSCHTimepointInfo" type="local:SCHTimepointInfo" minOccurs="0"/>
