complexType tcip:SCHRoute

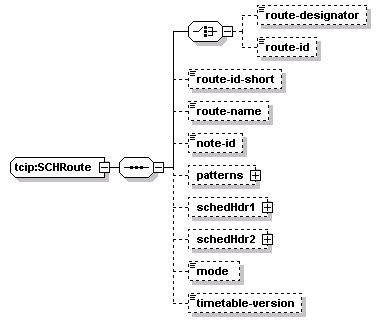

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route-designator route-id route-id-short route-name note-id patterns schedHdr1 schedHdr2 mode timetable-version
source	<xs:complexType name="SCHRoute">   <xs:sequence>     <xs:choice>       <xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>       <xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>     </xs:choice>     <xs:element name="route-id-short" type="CC-RouteIDShort" minOccurs="0"/>     <xs:element name="route-name" type="SCH-RouteName" minOccurs="0"/>     <xs:element name="note-id" type="SCH-NoteID" minOccurs="0"/>     <xs:element name="patterns" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="pattern" type="SCH-PatternID"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="schedHdr1" type="SCHMasterScheduleHdr" minOccurs="0"/>     <xs:element name="schedHdr2" type="SCHMasterScheduleHdr" minOccurs="0"/>     <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>     <xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHRoute/route-designator

diagram
type	tcip:SCH-RouteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>

element tcip:SCHRoute/route-id

diagram
type	tcip:SCH-RouteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>

element tcip:SCHRoute/route-id-short

diagram
type	tcip:CC-RouteIDShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-id-short" type="CC-RouteIDShort" minOccurs="0"/>

element tcip:SCHRoute/route-name

diagram
type	tcip:SCH-RouteName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="route-name" type="SCH-RouteName" minOccurs="0"/>

element tcip:SCHRoute/note-id

diagram
type	tcip:SCH-NoteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="note-id" type="SCH-NoteID" minOccurs="0"/>

element tcip:SCHRoute/patterns

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pattern
source	<xs:element name="patterns" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="pattern" type="SCH-PatternID"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHRoute/patterns/pattern

diagram
type	tcip:SCH-PatternID
properties	isRef  0 content  simple
source	<xs:element name="pattern" type="SCH-PatternID"/>

element tcip:SCHRoute/schedHdr1

diagram
type	tcip:SCHMasterScheduleHdr
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	time-point-ids time-point-designators display-names display-hdr-info route-direction-name route-direction-description mode timetable-version
source	<xs:element name="schedHdr1" type="SCHMasterScheduleHdr" minOccurs="0"/>

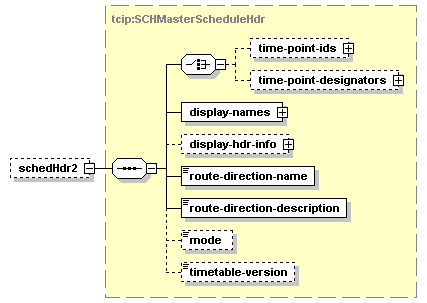

element tcip:SCHRoute/schedHdr2

diagram
type	tcip:SCHMasterScheduleHdr
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	time-point-ids time-point-designators display-names display-hdr-info route-direction-name route-direction-description mode timetable-version
source	<xs:element name="schedHdr2" type="SCHMasterScheduleHdr" minOccurs="0"/>

element tcip:SCHRoute/mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="mode" type="CPT-Mode" minOccurs="0"/>

element tcip:SCHRoute/timetable-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>
