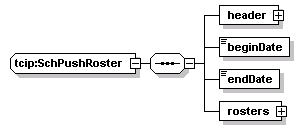

complexType tcip:SchPushRoster

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	header beginDate endDate rosters
used by	element  tcip:schPushRoster
source	<xs:complexType name="SchPushRoster">   <xs:sequence>     <xs:element name="header" type="CPTPushHeader"/>     <xs:element name="beginDate" type="CPT-Date"/>     <xs:element name="endDate" type="CPT-Date"/>     <xs:element name="rosters">       <xs:complexType>         <xs:sequence maxOccurs="25000">           <xs:element name="roster" type="SCHRoster"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

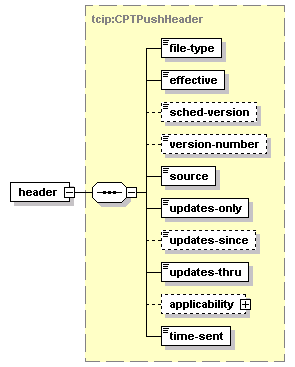

element tcip:SchPushRoster/header

diagram
type	tcip:CPTPushHeader
properties	isRef  0 content  complex
children	file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source	<xs:element name="header" type="CPTPushHeader"/>

element tcip:SchPushRoster/beginDate

diagram
type	tcip:CPT-Date
properties	isRef  0 content  simple
source	<xs:element name="beginDate" type="CPT-Date"/>

element tcip:SchPushRoster/endDate

diagram
type	tcip:CPT-Date
properties	isRef  0 content  simple
source	<xs:element name="endDate" type="CPT-Date"/>

element tcip:SchPushRoster/rosters

diagram
properties	isRef  0 content  complex
children	roster
source	<xs:element name="rosters">   <xs:complexType>     <xs:sequence maxOccurs="25000">       <xs:element name="roster" type="SCHRoster"/>     </xs:sequence>   </xs:complexType> </xs:element>

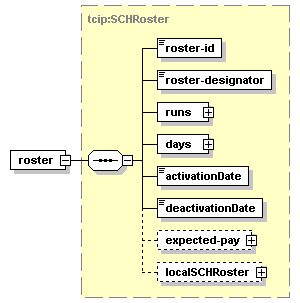

element tcip:SchPushRoster/rosters/roster

diagram
type	tcip:SCHRoster
properties	isRef  0 content  complex
children	roster-id roster-designator runs days activationDate deactivationDate expected-pay localSCHRoster
source	<xs:element name="roster" type="SCHRoster"/>
