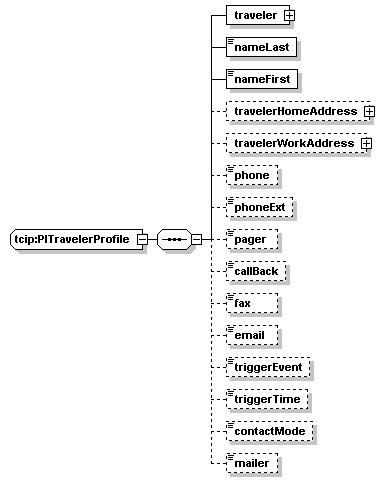

complexType tcip:PITravelerProfile

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	traveler nameLast nameFirst travelerHomeAddress travelerWorkAddress phone phoneExt pager callBack fax email triggerEvent triggerTime contactMode mailer
used by	elements  tcip:PiSendMailing/mailingRequest tcip:PITripRequest/profile
source	<xs:complexType name="PITravelerProfile">   <xs:sequence>     <xs:element name="traveler" type="PITravelerIden"/>     <xs:element name="nameLast" type="PI-TravelerLastName"/>     <xs:element name="nameFirst" type="PI-TravelerFirstName"/>     <xs:element name="travelerHomeAddress" type="lrms:AddressPoint" minOccurs="0"/>     <xs:element name="travelerWorkAddress" type="lrms:AddressPoint" minOccurs="0"/>     <xs:element name="phone" type="PI-TravelerPhone" minOccurs="0"/>     <xs:element name="phoneExt" type="PI-TravelerPhoneExtension" minOccurs="0"/>     <xs:element name="pager" type="PI-TravelerPager" minOccurs="0"/>     <xs:element name="callBack" type="PI-TravelerCallBack" minOccurs="0"/>     <xs:element name="fax" type="PI-TravelerFax" minOccurs="0"/>     <xs:element name="email" type="PI-TravelerEmail" minOccurs="0"/>     <xs:element name="triggerEvent" type="PI-TravelerTriggerEvent" minOccurs="0"/>     <xs:element name="triggerTime" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="contactMode" type="PI-TravelerContactMode" minOccurs="0"/>     <xs:element name="mailer" type="PI-TravelerMailingMatl" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PITravelerProfile/traveler

diagram
type	tcip:PITravelerIden
properties	isRef  0 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="traveler" type="PITravelerIden"/>

element tcip:PITravelerProfile/nameLast

diagram
type	tcip:PI-TravelerLastName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="nameLast" type="PI-TravelerLastName"/>

element tcip:PITravelerProfile/nameFirst

diagram
type	tcip:PI-TravelerFirstName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="nameFirst" type="PI-TravelerFirstName"/>

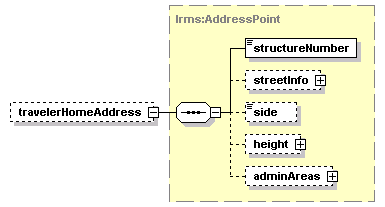

element tcip:PITravelerProfile/travelerHomeAddress

diagram
type	lrms:AddressPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="travelerHomeAddress" type="lrms:AddressPoint" minOccurs="0"/>

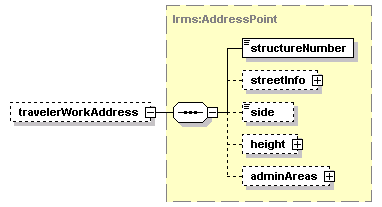

element tcip:PITravelerProfile/travelerWorkAddress

diagram
type	lrms:AddressPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="travelerWorkAddress" type="lrms:AddressPoint" minOccurs="0"/>

element tcip:PITravelerProfile/phone

diagram
type	tcip:PI-TravelerPhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="phone" type="PI-TravelerPhone" minOccurs="0"/>

element tcip:PITravelerProfile/phoneExt

diagram
type	tcip:PI-TravelerPhoneExtension
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="phoneExt" type="PI-TravelerPhoneExtension" minOccurs="0"/>

element tcip:PITravelerProfile/pager

diagram
type	tcip:PI-TravelerPager
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="pager" type="PI-TravelerPager" minOccurs="0"/>

element tcip:PITravelerProfile/callBack

diagram
type	tcip:PI-TravelerCallBack
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="callBack" type="PI-TravelerCallBack" minOccurs="0"/>

element tcip:PITravelerProfile/fax

diagram
type	tcip:PI-TravelerFax
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="fax" type="PI-TravelerFax" minOccurs="0"/>

element tcip:PITravelerProfile/email

diagram
type	tcip:PI-TravelerEmail
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="email" type="PI-TravelerEmail" minOccurs="0"/>

element tcip:PITravelerProfile/triggerEvent

diagram
type	tcip:PI-TravelerTriggerEvent
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="triggerEvent" type="PI-TravelerTriggerEvent" minOccurs="0"/>

element tcip:PITravelerProfile/triggerTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="triggerTime" type="CPT-DateTime" minOccurs="0"/>

element tcip:PITravelerProfile/contactMode

diagram
type	tcip:PI-TravelerContactMode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="contactMode" type="PI-TravelerContactMode" minOccurs="0"/>

element tcip:PITravelerProfile/mailer

diagram
type	tcip:PI-TravelerMailingMatl
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="mailer" type="PI-TravelerMailingMatl" minOccurs="0"/>
