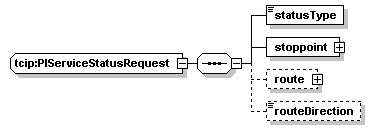

complexType tcip:PIServiceStatusRequest

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	statusType stoppoint route routeDirection
used by	elements  tcip:PiServiceStatus/requests/request tcip:PiServiceStatusSub/requests/request
source	<xs:complexType name="PIServiceStatusRequest">   <xs:sequence>     <xs:element name="statusType" type="PI-ServiceStatusType"/>     <xs:element name="stoppoint" type="CPTStoppointIden"/>     <xs:element name="route" type="SCHRouteIden" minOccurs="0"/>     <xs:element name="routeDirection" type="SCH-RouteDirectionName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIServiceStatusRequest/statusType

diagram
type	tcip:PI-ServiceStatusType
properties	isRef  0 content  simple
source	<xs:element name="statusType" type="PI-ServiceStatusType"/>

element tcip:PIServiceStatusRequest/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:PIServiceStatusRequest/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden" minOccurs="0"/>

element tcip:PIServiceStatusRequest/routeDirection

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="routeDirection" type="SCH-RouteDirectionName" minOccurs="0"/>
