complexType tcip:PiReportAckProfileUpdate

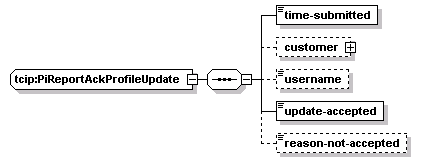

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	time-submitted customer username update-accepted reason-not-accepted
used by	element  tcip:piReportAckProfileUpdate
source	<xs:complexType name="PiReportAckProfileUpdate">   <xs:sequence>     <xs:element name="time-submitted" type="CPT-DateTime"/>     <xs:element name="customer" type="PITravelerIden" minOccurs="0"/>     <xs:element name="username" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="update-accepted" type="CPT-Boolean"/>     <xs:element name="reason-not-accepted" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PiReportAckProfileUpdate/time-submitted

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-submitted" type="CPT-DateTime"/>

element tcip:PiReportAckProfileUpdate/customer

diagram
type	tcip:PITravelerIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="customer" type="PITravelerIden" minOccurs="0"/>

element tcip:PiReportAckProfileUpdate/username

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="username" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiReportAckProfileUpdate/update-accepted

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="update-accepted" type="CPT-Boolean"/>

element tcip:PiReportAckProfileUpdate/reason-not-accepted

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="reason-not-accepted" type="CPT-Footnote" minOccurs="0"/>
