complexType tcip:PIGeoZone

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	zone zone-boundary localPIGeoZone
used by	element  tcip:PiGeoZoneList/zone-defs/zone-def
source	<xs:complexType name="PIGeoZone">   <xs:sequence>     <xs:element name="zone" type="PIServiceZoneIden"/>     <xs:element name="zone-boundary" type="SPPolygon"/>     <xs:element name="localPIGeoZone" type="local:PIGeoZone" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIGeoZone/zone

diagram
type	tcip:PIServiceZoneIden
properties	isRef  0 content  simple
source	<xs:element name="zone" type="PIServiceZoneIden"/>

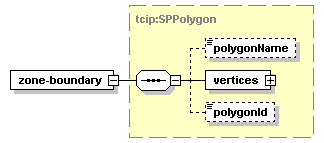

element tcip:PIGeoZone/zone-boundary

diagram
type	tcip:SPPolygon
properties	isRef  0 content  complex
children	polygonName vertices polygonId
source	<xs:element name="zone-boundary" type="SPPolygon"/>

element tcip:PIGeoZone/localPIGeoZone

diagram
type	PIGeoZone
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIGeoZone" type="local:PIGeoZone" minOccurs="0"/>
