complexType tcip:PiAckNewProfile

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	time-submitted new-profile-number existing-profile-number
used by	element  tcip:piAckNewProfile
source	<xs:complexType name="PiAckNewProfile">   <xs:sequence>     <xs:element name="time-submitted" type="CPT-DateTime"/>     <xs:element name="new-profile-number" type="PITravelerIden"/>     <!-- zero if not created -->     <xs:element name="existing-profile-number" type="PITravelerIden" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PiAckNewProfile/time-submitted

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-submitted" type="CPT-DateTime"/>

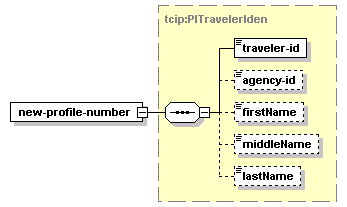

element tcip:PiAckNewProfile/new-profile-number

diagram
type	tcip:PITravelerIden
properties	isRef  0 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="new-profile-number" type="PITravelerIden"/>

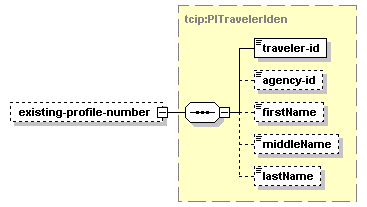

element tcip:PiAckNewProfile/existing-profile-number

diagram
type	tcip:PITravelerIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="existing-profile-number" type="PITravelerIden" minOccurs="0"/>
