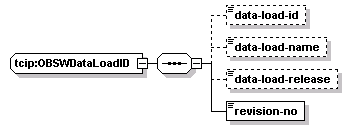

complexType tcip:OBSWDataLoadID

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	data-load-id data-load-name data-load-release revision-no
used by	element  tcip:OBSWComponent/data-loads/data-load
source	<xs:complexType name="OBSWDataLoadID">   <xs:sequence>     <xs:element name="data-load-id" type="OB-DataLoadID" minOccurs="0"/>     <xs:element name="data-load-name" type="OB-DataLoadName" minOccurs="0"/>     <xs:element name="data-load-release" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="revision-no" type="CPT-VersionNo"/>   </xs:sequence> </xs:complexType>

element tcip:OBSWDataLoadID/data-load-id

diagram
type	tcip:OB-DataLoadID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="data-load-id" type="OB-DataLoadID" minOccurs="0"/>

element tcip:OBSWDataLoadID/data-load-name

diagram
type	tcip:OB-DataLoadName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  17
source	<xs:element name="data-load-name" type="OB-DataLoadName" minOccurs="0"/>

element tcip:OBSWDataLoadID/data-load-release

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="data-load-release" type="CPT-DateTime" minOccurs="0"/>

element tcip:OBSWDataLoadID/revision-no

diagram
type	tcip:CPT-VersionNo
properties	isRef  0 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="revision-no" type="CPT-VersionNo"/>
