complexType tcip:IMVehicleIDInformation

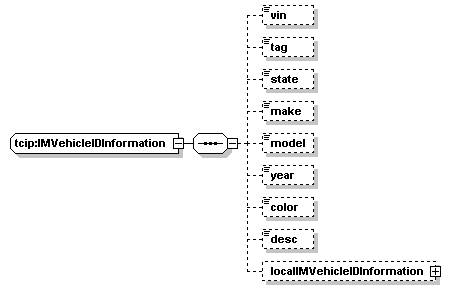

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vin tag state make model year color desc localIMVehicleIDInformation
used by	element  tcip:IMOtherVehicleInvolved/veh-info
source	<xs:complexType name="IMVehicleIDInformation">   <xs:sequence>     <xs:element name="vin" type="CPT-VIN" minOccurs="0"/>     <xs:element name="tag" type="IM-VehicleTag" minOccurs="0"/>     <!-- License plate number -->     <xs:element name="state" type="IM-VehicleState" minOccurs="0"/>     <xs:element name="make" type="IM-VehicleMake" minOccurs="0"/>     <xs:element name="model" type="IM-VehicleModel" minOccurs="0"/>     <xs:element name="year" type="IM-VehicleYear" minOccurs="0"/>     <xs:element name="color" type="IM-VehicleColor" minOccurs="0"/>     <xs:element name="desc" type="IM-VehicleDescription" minOccurs="0"/>     <xs:element name="localIMVehicleIDInformation" type="local:IMVehicleIDInformation" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMVehicleIDInformation/vin

diagram
type	tcip:CPT-VIN
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  17
source	<xs:element name="vin" type="CPT-VIN" minOccurs="0"/>

element tcip:IMVehicleIDInformation/tag

diagram
type	tcip:IM-VehicleTag
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="tag" type="IM-VehicleTag" minOccurs="0"/>

element tcip:IMVehicleIDInformation/state

diagram
type	tcip:IM-VehicleState
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="state" type="IM-VehicleState" minOccurs="0"/>

element tcip:IMVehicleIDInformation/make

diagram
type	tcip:IM-VehicleMake
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="make" type="IM-VehicleMake" minOccurs="0"/>

element tcip:IMVehicleIDInformation/model

diagram
type	tcip:IM-VehicleModel
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="model" type="IM-VehicleModel" minOccurs="0"/>

element tcip:IMVehicleIDInformation/year

diagram
type	tcip:IM-VehicleYear
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="year" type="IM-VehicleYear" minOccurs="0"/>

element tcip:IMVehicleIDInformation/color

diagram
type	tcip:IM-VehicleColor
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="color" type="IM-VehicleColor" minOccurs="0"/>

element tcip:IMVehicleIDInformation/desc

diagram
type	tcip:IM-VehicleDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="desc" type="IM-VehicleDescription" minOccurs="0"/>

element tcip:IMVehicleIDInformation/localIMVehicleIDInformation

diagram
type	IMVehicleIDInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMVehicleIDInformation" type="local:IMVehicleIDInformation" minOccurs="0"/>
