complexType tcip:IMInjuryInfo

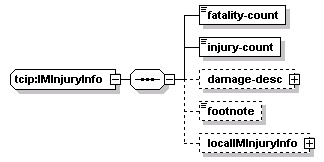

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	fatality-count injury-count damage-desc footnote localIMInjuryInfo
used by	elements  tcip:IMOtherVehicleInvolved/injury-info tcip:IMPTVehicleInvolved/injury-info
source	<xs:complexType name="IMInjuryInfo">   <xs:sequence>     <xs:element name="fatality-count" type="IM-HumanFatalityCount"/>     <xs:element name="injury-count" type="IM-HumanInjuryCount"/>     <xs:element name="damage-desc" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="damage-desc-item" type="IM-PropertyDamage"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localIMInjuryInfo" type="local:IMInjuryInfo" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMInjuryInfo/fatality-count

diagram
type	tcip:IM-HumanFatalityCount
properties	isRef  0 content  simple
source	<xs:element name="fatality-count" type="IM-HumanFatalityCount"/>

element tcip:IMInjuryInfo/injury-count

diagram
type	tcip:IM-HumanInjuryCount
properties	isRef  0 content  simple
source	<xs:element name="injury-count" type="IM-HumanInjuryCount"/>

element tcip:IMInjuryInfo/damage-desc

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	damage-desc-item
source	<xs:element name="damage-desc" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="damage-desc-item" type="IM-PropertyDamage"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:IMInjuryInfo/damage-desc/damage-desc-item

diagram
type	tcip:IM-PropertyDamage
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="damage-desc-item" type="IM-PropertyDamage"/>

element tcip:IMInjuryInfo/footnote

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>

element tcip:IMInjuryInfo/localIMInjuryInfo

diagram
type	IMInjuryInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMInjuryInfo" type="local:IMInjuryInfo" minOccurs="0"/>
