complexType tcip:ImCommandIncidentResponseAck

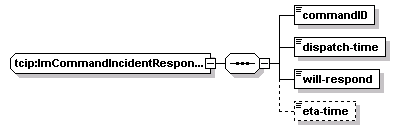

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	commandID dispatch-time will-respond eta-time
used by	element  tcip:imCommandIncidentResponseAck
source	<xs:complexType name="ImCommandIncidentResponseAck">   <xs:sequence>     <xs:element name="commandID" type="CPT-CommandID"/>     <!-- from command msg -->     <xs:element name="dispatch-time" type="CPT-DateTime"/>     <!-- from command msg -->     <xs:element name="will-respond" type="CPT-Boolean"/>     <xs:element name="eta-time" type="CPT-DateTime" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:ImCommandIncidentResponseAck/commandID

diagram
type	tcip:CPT-CommandID
properties	isRef  0 content  simple
source	<xs:element name="commandID" type="CPT-CommandID"/>

element tcip:ImCommandIncidentResponseAck/dispatch-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="dispatch-time" type="CPT-DateTime"/>

element tcip:ImCommandIncidentResponseAck/will-respond

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="will-respond" type="CPT-Boolean"/>

element tcip:ImCommandIncidentResponseAck/eta-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="eta-time" type="CPT-DateTime" minOccurs="0"/>
