complexType tcip:FCVaultContents

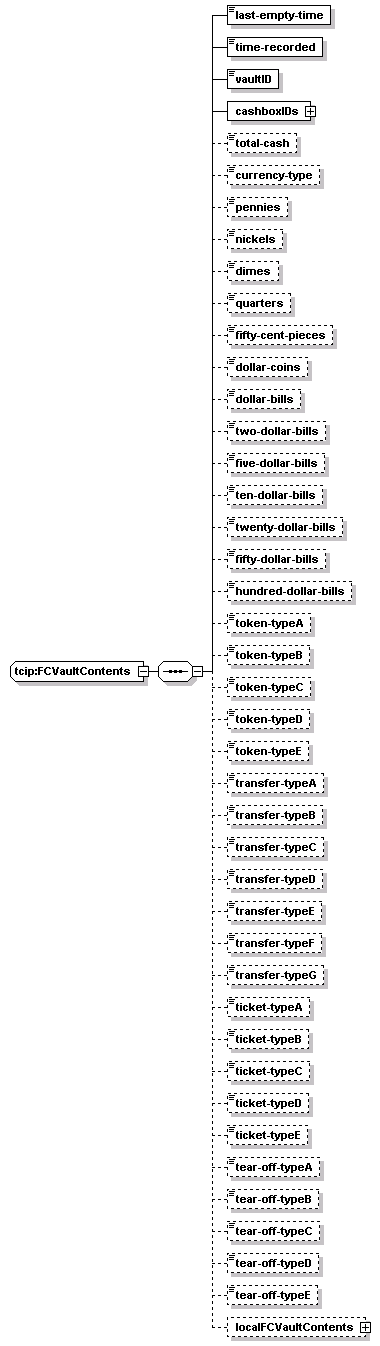

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	last-empty-time time-recorded vaultID cashboxIDs total-cash currency-type pennies nickels dimes quarters fifty-cent-pieces dollar-coins dollar-bills two-dollar-bills five-dollar-bills ten-dollar-bills twenty-dollar-bills fifty-dollar-bills hundred-dollar-bills token-typeA token-typeB token-typeC token-typeD token-typeE transfer-typeA transfer-typeB transfer-typeC transfer-typeD transfer-typeE transfer-typeF transfer-typeG ticket-typeA ticket-typeB ticket-typeC ticket-typeD ticket-typeE tear-off-typeA tear-off-typeB tear-off-typeC tear-off-typeD tear-off-typeE localFCVaultContents
used by	element  tcip:FCVaultEvent/removedVaultContents
source	<xs:complexType name="FCVaultContents">   <xs:sequence>     <xs:element name="last-empty-time" type="CPT-DateTime"/>     <xs:element name="time-recorded" type="CPT-DateTime"/>     <xs:element name="vaultID" type="CPT-SerialNumber"/>     <xs:element name="cashboxIDs">       <xs:complexType>         <xs:sequence maxOccurs="30000">           <xs:element name="cashboxID" type="CPT-SerialNumber"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="total-cash" type="FC-MonetaryValue" minOccurs="0"/>     <xs:element name="currency-type" type="FC-MonetaryInstrAuth" minOccurs="0"/>     <xs:element name="pennies" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="nickels" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="dimes" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="quarters" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="fifty-cent-pieces" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="dollar-coins" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="two-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="five-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ten-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="twenty-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="fifty-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="hundred-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="token-typeA" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="token-typeB" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="token-typeC" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="token-typeD" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="token-typeE" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeA" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeB" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeC" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeD" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeE" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeF" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="transfer-typeG" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ticket-typeA" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ticket-typeB" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ticket-typeC" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ticket-typeD" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="ticket-typeE" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="tear-off-typeA" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="tear-off-typeB" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="tear-off-typeC" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="tear-off-typeD" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="tear-off-typeE" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="localFCVaultContents" type="local:FCVaultContents" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCVaultContents/last-empty-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="last-empty-time" type="CPT-DateTime"/>

element tcip:FCVaultContents/time-recorded

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-recorded" type="CPT-DateTime"/>

element tcip:FCVaultContents/vaultID

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="vaultID" type="CPT-SerialNumber"/>

element tcip:FCVaultContents/cashboxIDs

diagram
properties	isRef  0 content  complex
children	cashboxID
source	<xs:element name="cashboxIDs">   <xs:complexType>     <xs:sequence maxOccurs="30000">       <xs:element name="cashboxID" type="CPT-SerialNumber"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCVaultContents/cashboxIDs/cashboxID

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="cashboxID" type="CPT-SerialNumber"/>

element tcip:FCVaultContents/total-cash

diagram
type	tcip:FC-MonetaryValue
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="total-cash" type="FC-MonetaryValue" minOccurs="0"/>

element tcip:FCVaultContents/currency-type

diagram
type	tcip:FC-MonetaryInstrAuth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="currency-type" type="FC-MonetaryInstrAuth" minOccurs="0"/>

element tcip:FCVaultContents/pennies

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pennies" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/nickels

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nickels" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/dimes

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="dimes" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/quarters

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="quarters" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/fifty-cent-pieces

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="fifty-cent-pieces" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/dollar-coins

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="dollar-coins" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/two-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="two-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/five-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="five-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ten-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ten-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/twenty-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="twenty-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/fifty-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="fifty-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/hundred-dollar-bills

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="hundred-dollar-bills" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/token-typeA

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="token-typeA" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/token-typeB

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="token-typeB" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/token-typeC

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="token-typeC" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/token-typeD

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="token-typeD" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/token-typeE

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="token-typeE" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeA

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeA" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeB

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeB" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeC

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeC" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeD

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeD" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeE

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeE" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeF

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeF" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/transfer-typeG

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="transfer-typeG" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ticket-typeA

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ticket-typeA" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ticket-typeB

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ticket-typeB" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ticket-typeC

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ticket-typeC" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ticket-typeD

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ticket-typeD" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/ticket-typeE

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ticket-typeE" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/tear-off-typeA

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tear-off-typeA" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/tear-off-typeB

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tear-off-typeB" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/tear-off-typeC

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tear-off-typeC" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/tear-off-typeD

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tear-off-typeD" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/tear-off-typeE

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tear-off-typeE" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCVaultContents/localFCVaultContents

diagram
type	FCVaultContents
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localFCVaultContents" type="local:FCVaultContents" minOccurs="0"/>
