complexType tcip:FCTripFareAlternative

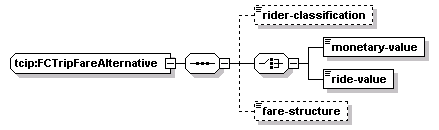

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	rider-classification monetary-value ride-value fare-structure
used by	element  tcip:FCTripFare/alternatives/alternative
source	<xs:complexType name="FCTripFareAlternative">   <xs:sequence>     <xs:element name="rider-classification" type="atis:TravelerClass" minOccurs="0"/>     <xs:choice>       <xs:element name="monetary-value" type="FC-FareCost"/>       <xs:element name="ride-value" type="FC-RideValue"/>     </xs:choice>     <xs:element name="fare-structure" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCTripFareAlternative/rider-classification

diagram
type	atis:TravelerClass
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rider-classification" type="atis:TravelerClass" minOccurs="0"/>

element tcip:FCTripFareAlternative/monetary-value

diagram
type	tcip:FC-FareCost
properties	isRef  0 content  simple
source	<xs:element name="monetary-value" type="FC-FareCost"/>

element tcip:FCTripFareAlternative/ride-value

diagram
type	tcip:FC-RideValue
properties	isRef  0 content  simple
source	<xs:element name="ride-value" type="FC-RideValue"/>

element tcip:FCTripFareAlternative/fare-structure

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="fare-structure" type="CPT-Footnote" minOccurs="0"/>
