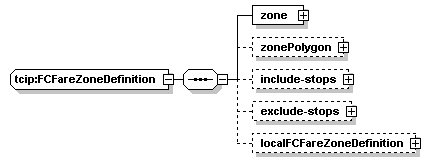

complexType tcip:FCFareZoneDefinition
diagram
namespace http://www.TCIP-Adopted-03-00-01
children zone zonePolygon include-stops exclude-stops localFCFareZoneDefinition
used by
elements tcip:FcFareDataPush/fareZones/fareZone tcip:FcFareLoadData/fareZones/fareZone tcip:FcFareZonePush/fareZones/fareZone tcip:FcFareZones/zones/zone
source <xs:complexType name="FCFareZoneDefinition">
  <xs:sequence>
    <xs:element name="zone" type="FCFareZoneIden"/>
    <xs:element name="zonePolygon" type="SPPolygon" minOccurs="0"/>
    <xs:element name="include-stops" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="2000">
          <xs:element name="include-stop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="exclude-stops" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="2000">
          <xs:element name="exclude-stop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localFCFareZoneDefinition" type="local:FCFareZoneDefinition" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:FCFareZoneDefinition/zone
diagram
type tcip:FCFareZoneIden
properties
isRef 0
content complex
children zone-id agency-id zone-name
source <xs:element name="zone" type="FCFareZoneIden"/>

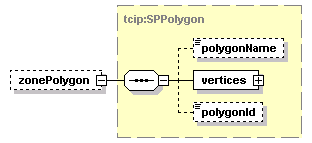

element tcip:FCFareZoneDefinition/zonePolygon
diagram
type tcip:SPPolygon
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children polygonName vertices polygonId
source <xs:element name="zonePolygon" type="SPPolygon" minOccurs="0"/>

element tcip:FCFareZoneDefinition/include-stops
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children include-stop
source <xs:element name="include-stops" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="2000">
      <xs:element name="include-stop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:FCFareZoneDefinition/include-stops/include-stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="include-stop" type="CPTStoppointIden"/>

element tcip:FCFareZoneDefinition/exclude-stops
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children exclude-stop
source <xs:element name="exclude-stops" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="2000">
      <xs:element name="exclude-stop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

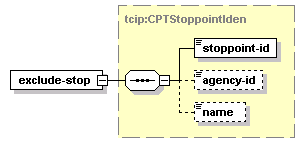

element tcip:FCFareZoneDefinition/exclude-stops/exclude-stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="exclude-stop" type="CPTStoppointIden"/>

element tcip:FCFareZoneDefinition/localFCFareZoneDefinition
diagram
type FCFareZoneDefinition
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localFCFareZoneDefinition" type="local:FCFareZoneDefinition" minOccurs="0"/>
