complexType tcip:FCFareTransaction

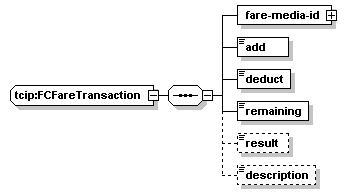

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	fare-media-id add deduct remaining result description
source	<xs:complexType name="FCFareTransaction">   <xs:sequence>     <xs:element name="fare-media-id" type="FCFareMediaID"/>     <xs:element name="add" type="FC-ValueAdd"/>     <xs:element name="deduct" type="FC-ValueDeduct"/>     <xs:element name="remaining" type="FC-ValueRemaining"/>     <xs:element name="result" type="FC-TransactionResult" minOccurs="0"/>     <xs:element name="description" type="FC-TransactionDescription" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCFareTransaction/fare-media-id

diagram
type	tcip:FCFareMediaID
properties	isRef  0 content  complex
children	text number
source	<xs:element name="fare-media-id" type="FCFareMediaID"/>

element tcip:FCFareTransaction/add

diagram
type	tcip:FC-ValueAdd
properties	isRef  0 content  simple
source	<xs:element name="add" type="FC-ValueAdd"/>

element tcip:FCFareTransaction/deduct

diagram
type	tcip:FC-ValueDeduct
properties	isRef  0 content  simple
source	<xs:element name="deduct" type="FC-ValueDeduct"/>

element tcip:FCFareTransaction/remaining

diagram
type	tcip:FC-ValueRemaining
properties	isRef  0 content  simple
source	<xs:element name="remaining" type="FC-ValueRemaining"/>

element tcip:FCFareTransaction/result

diagram
type	tcip:FC-TransactionResult
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="result" type="FC-TransactionResult" minOccurs="0"/>

element tcip:FCFareTransaction/description

diagram
type	tcip:FC-TransactionDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="description" type="FC-TransactionDescription" minOccurs="0"/>
