complexType tcip:FCFareRecord

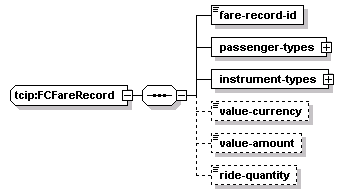

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	fare-record-id passenger-types instrument-types value-currency value-amount ride-quantity
used by	elements  tcip:FCFareDefinitionRecord/fare-records/fare-record tcip:FCTransactionRecord/trans-fare-record
source	<xs:complexType name="FCFareRecord">   <xs:sequence>     <xs:element name="fare-record-id" type="FC-FareRecordID"/>     <xs:element name="passenger-types">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="passenger-type" type="atis:TravelerClass"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="instrument-types">       <xs:complexType>         <xs:sequence maxOccurs="300">           <xs:element name="instrument-type" type="FC-MonetaryInstrType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="value-currency" type="FC-MonetaryInstrAuth" minOccurs="0"/>     <xs:element name="value-amount" type="FC-MonetaryInstrValue" minOccurs="0"/>     <xs:element name="ride-quantity" type="FC-RideValueDeduct" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCFareRecord/fare-record-id

diagram
type	tcip:FC-FareRecordID
properties	isRef  0 content  simple
source	<xs:element name="fare-record-id" type="FC-FareRecordID"/>

element tcip:FCFareRecord/passenger-types

diagram
properties	isRef  0 content  complex
children	passenger-type
source	<xs:element name="passenger-types">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="passenger-type" type="atis:TravelerClass"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCFareRecord/passenger-types/passenger-type

diagram
type	atis:TravelerClass
properties	isRef  0 content  simple
source	<xs:element name="passenger-type" type="atis:TravelerClass"/>

element tcip:FCFareRecord/instrument-types

diagram
properties	isRef  0 content  complex
children	instrument-type
source	<xs:element name="instrument-types">   <xs:complexType>     <xs:sequence maxOccurs="300">       <xs:element name="instrument-type" type="FC-MonetaryInstrType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCFareRecord/instrument-types/instrument-type

diagram
type	tcip:FC-MonetaryInstrType
properties	isRef  0 content  simple
source	<xs:element name="instrument-type" type="FC-MonetaryInstrType"/>

element tcip:FCFareRecord/value-currency

diagram
type	tcip:FC-MonetaryInstrAuth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="value-currency" type="FC-MonetaryInstrAuth" minOccurs="0"/>

element tcip:FCFareRecord/value-amount

diagram
type	tcip:FC-MonetaryInstrValue
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="value-amount" type="FC-MonetaryInstrValue" minOccurs="0"/>

element tcip:FCFareRecord/ride-quantity

diagram
type	tcip:FC-RideValueDeduct
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ride-quantity" type="FC-RideValueDeduct" minOccurs="0"/>
