complexType tcip:FCFareCharacterCost

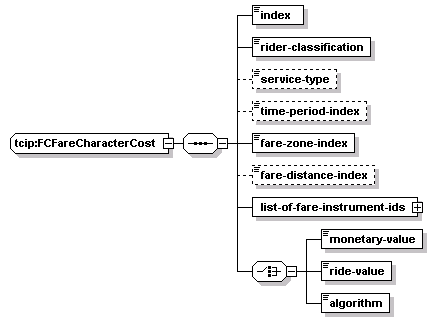

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	index rider-classification service-type time-period-index fare-zone-index fare-distance-index list-of-fare-instrument-ids monetary-value ride-value algorithm
source	<xs:complexType name="FCFareCharacterCost">   <xs:sequence>     <xs:element name="index" type="FC-FareCharacterCostIndex"/>     <xs:element name="rider-classification" type="atis:TravelerClass"/>     <xs:element name="service-type" type="SCH-ServiceType" minOccurs="0"/>     <xs:element name="time-period-index" type="FC-TimePeriodIndex" minOccurs="0"/>     <xs:element name="fare-zone-index" type="FC-FareZoneIndex"/>     <xs:element name="fare-distance-index" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="list-of-fare-instrument-ids">       <xs:complexType>         <xs:sequence maxOccurs="15000">           <xs:element name="list-of-fare-instrument-id" type="FC-FareInstrID"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:choice>       <xs:element name="monetary-value" type="FC-FareCost"/>       <xs:element name="ride-value" type="FC-RideValue"/>       <xs:element name="algorithm" type="CC-ExecutableSoftware"/>       <!-- (executable or algorithm for calculating fare) -->     </xs:choice>   </xs:sequence> </xs:complexType>

element tcip:FCFareCharacterCost/index

diagram
type	tcip:FC-FareCharacterCostIndex
properties	isRef  0 content  simple
source	<xs:element name="index" type="FC-FareCharacterCostIndex"/>

element tcip:FCFareCharacterCost/rider-classification

diagram
type	atis:TravelerClass
properties	isRef  0 content  simple
source	<xs:element name="rider-classification" type="atis:TravelerClass"/>

element tcip:FCFareCharacterCost/service-type

diagram
type	tcip:SCH-ServiceType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="service-type" type="SCH-ServiceType" minOccurs="0"/>

element tcip:FCFareCharacterCost/time-period-index

diagram
type	tcip:FC-TimePeriodIndex
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="time-period-index" type="FC-TimePeriodIndex" minOccurs="0"/>

element tcip:FCFareCharacterCost/fare-zone-index

diagram
type	tcip:FC-FareZoneIndex
properties	isRef  0 content  simple
source	<xs:element name="fare-zone-index" type="FC-FareZoneIndex"/>

element tcip:FCFareCharacterCost/fare-distance-index

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="fare-distance-index" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:FCFareCharacterCost/list-of-fare-instrument-ids

diagram
properties	isRef  0 content  complex
children	list-of-fare-instrument-id
source	<xs:element name="list-of-fare-instrument-ids">   <xs:complexType>     <xs:sequence maxOccurs="15000">       <xs:element name="list-of-fare-instrument-id" type="FC-FareInstrID"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCFareCharacterCost/list-of-fare-instrument-ids/list-of-fare-instrument-id

diagram
type	tcip:FC-FareInstrID
properties	isRef  0 content  simple
source	<xs:element name="list-of-fare-instrument-id" type="FC-FareInstrID"/>

element tcip:FCFareCharacterCost/monetary-value

diagram
type	tcip:FC-FareCost
properties	isRef  0 content  simple
source	<xs:element name="monetary-value" type="FC-FareCost"/>

element tcip:FCFareCharacterCost/ride-value

diagram
type	tcip:FC-RideValue
properties	isRef  0 content  simple
source	<xs:element name="ride-value" type="FC-RideValue"/>

element tcip:FCFareCharacterCost/algorithm

diagram
type	tcip:CC-ExecutableSoftware
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="algorithm" type="CC-ExecutableSoftware"/>
