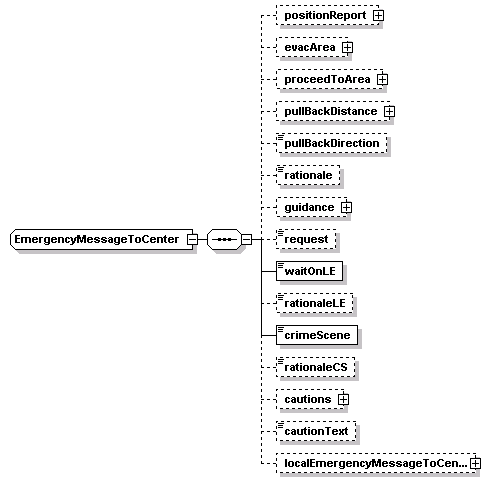

complexType EmergencyMessageToCenter
diagram
namespace http://www.IM-Draft-03-00-44a
children positionReport evacArea proceedToArea pullBackDistance pullBackDirection rationale guidance request waitOnLE rationaleLE crimeScene rationaleCS cautions cautionText localEmergencyMessageToCenter
used by
element MobileData/emergencyMessageToCenter
source <xs:complexType name="EmergencyMessageToCenter">
  <xs:sequence>
    <!-- from: ImmediateSiteEvacuation -->
    <xs:element name="positionReport" type="PositionReport" minOccurs="0"/>
    <xs:element name="evacArea" type="StagingArea" minOccurs="0"/>
    <!-- Area to be evacuated -->
    <xs:element name="proceedToArea" type="StagingArea" minOccurs="0"/>
    <!-- Area to reassemble at -->
    <xs:element name="pullBackDistance" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="pullBackDirection" type="atis:Direction" minOccurs="0"/>
    <xs:element name="rationale" type="FreeText" minOccurs="0"/>
    <!-- Examples: sniper fire,  explosion hazard,
         toxic fumes,  etc. -->
    <xs:element name="guidance" minOccurs="0">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="5">
          <xs:element name="guidance-item" type="Guidance"/>
          <!-- sets of advice and warning phrases from:  ImmediateAssistance -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="request" type="FreeText" minOccurs="0"/>
    <!-- details as known.
         Examples:  type of distress;
         collapse danger;
         from:  CautionsForResponders -->
    <xs:element name="waitOnLE">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- if set True,  wait for law enforcement
         instructions before proceeding -->
    <xs:element name="rationaleLE" type="FreeText" minOccurs="0"/>
    <!-- text regarding the reason for the LE flag to be set -->
    <xs:element name="crimeScene">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- if set True,  law enforcement has decided that
         the area is to be treated as a crime scene,
         local procedures for this shall be in effect -->
    <xs:element name="rationaleCS" type="FreeText" minOccurs="0"/>
    <!-- text regarding the reason for the crime
         scene flag to be set to true -->
    <xs:element name="cautions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="caution" type="ResponderCautions"/>
          <!-- to be a list of responsder cautions to be issued -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="cautionText" type="FreeText" minOccurs="0"/>
    <xs:element name="localEmergencyMessageToCenter" type="local:EmergencyMessageToCenter" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element EmergencyMessageToCenter/positionReport
diagram
type PositionReport
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children position
source <xs:element name="positionReport" type="PositionReport" minOccurs="0"/>

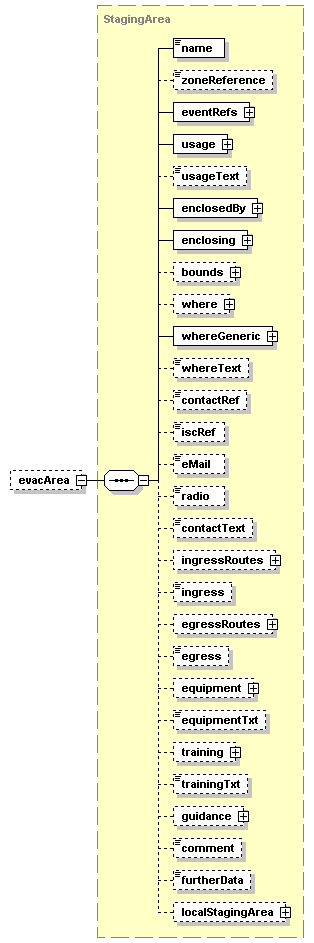

element EmergencyMessageToCenter/evacArea
diagram
type StagingArea
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name zoneReference eventRefs usage usageText enclosedBy enclosing bounds where whereGeneric whereText contactRef iscRef eMail radio contactText ingressRoutes ingress egressRoutes egress equipment equipmentTxt training trainingTxt guidance comment furtherData localStagingArea
source <xs:element name="evacArea" type="StagingArea" minOccurs="0"/>

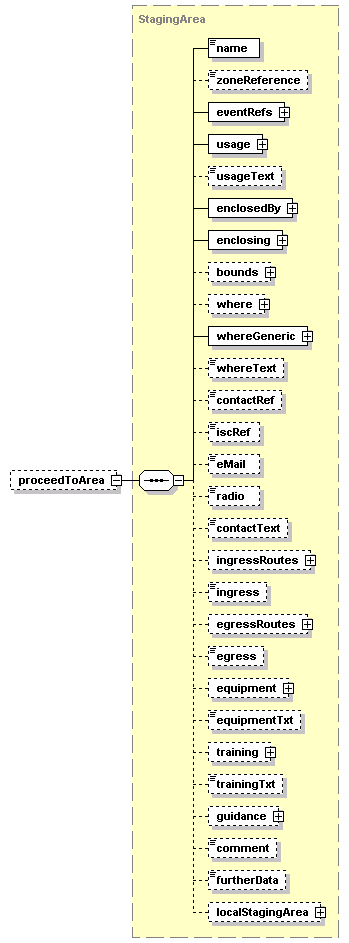

element EmergencyMessageToCenter/proceedToArea
diagram
type StagingArea
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name zoneReference eventRefs usage usageText enclosedBy enclosing bounds where whereGeneric whereText contactRef iscRef eMail radio contactText ingressRoutes ingress egressRoutes egress equipment equipmentTxt training trainingTxt guidance comment furtherData localStagingArea
source <xs:element name="proceedToArea" type="StagingArea" minOccurs="0"/>

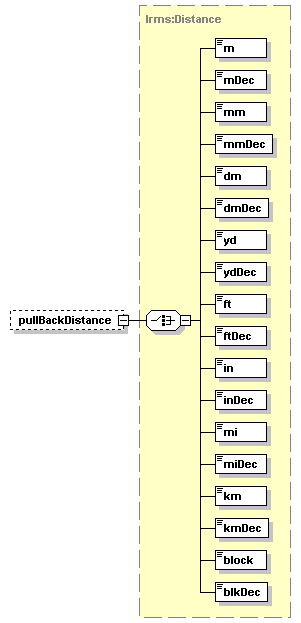

element EmergencyMessageToCenter/pullBackDistance
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="pullBackDistance" type="lrms:Distance" minOccurs="0"/>

element EmergencyMessageToCenter/pullBackDirection
diagram
type atis:Direction
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="pullBackDirection" type="atis:Direction" minOccurs="0"/>

element EmergencyMessageToCenter/rationale
diagram
type FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="rationale" type="FreeText" minOccurs="0"/>

element EmergencyMessageToCenter/guidance
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children guidance-item
source <xs:element name="guidance" minOccurs="0">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="5">
      <xs:element name="guidance-item" type="Guidance"/>
      <!-- sets of advice and warning phrases from:  ImmediateAssistance -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

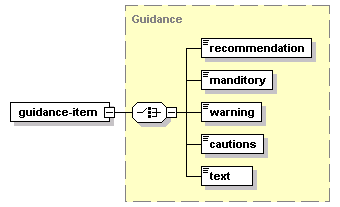

element EmergencyMessageToCenter/guidance/guidance-item
diagram
type Guidance
properties
isRef 0
content complex
children recommendation manditory warning cautions text
source <xs:element name="guidance-item" type="Guidance"/>

element EmergencyMessageToCenter/request
diagram
type FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="request" type="FreeText" minOccurs="0"/>

element EmergencyMessageToCenter/waitOnLE
diagram
type restriction of xs:boolean
properties
isRef 0
content simple
source <xs:element name="waitOnLE">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element EmergencyMessageToCenter/rationaleLE
diagram
type FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="rationaleLE" type="FreeText" minOccurs="0"/>

element EmergencyMessageToCenter/crimeScene
diagram
type restriction of xs:boolean
properties
isRef 0
content simple
source <xs:element name="crimeScene">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element EmergencyMessageToCenter/rationaleCS
diagram
type FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="rationaleCS" type="FreeText" minOccurs="0"/>

element EmergencyMessageToCenter/cautions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children caution
source <xs:element name="cautions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="caution" type="ResponderCautions"/>
      <!-- to be a list of responsder cautions to be issued -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EmergencyMessageToCenter/cautions/caution
diagram
type ResponderCautions
properties
isRef 0
content simple
source <xs:element name="caution" type="ResponderCautions"/>

element EmergencyMessageToCenter/cautionText
diagram
type FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="cautionText" type="FreeText" minOccurs="0"/>

element EmergencyMessageToCenter/localEmergencyMessageToCenter
diagram
type local:EmergencyMessageToCenter
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localEmergencyMessageToCenter" type="local:EmergencyMessageToCenter" minOccurs="0"/>
