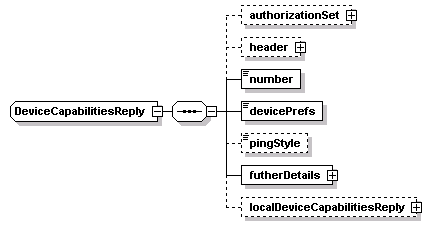

complexType DeviceCapabilitiesReply

diagram
namespace	http://www.IM-Draft-03-00-44a
children	authorizationSet header number devicePrefs pingStyle futherDetails localDeviceCapabilitiesReply
used by	element  deviceCapabilitiesReply
source	<xs:complexType name="DeviceCapabilitiesReply">   <xs:sequence>     <xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>     <xs:element name="header" type="MobileHeader" minOccurs="0"/>     <xs:element name="number" type="ReferenceID"/>     <!-- Used as an asset ID -->     <xs:element name="devicePrefs" type="DevicePreferences"/>     <!-- Operating style to be used -->     <xs:element name="pingStyle" type="PingStyle" minOccurs="0"/>     <!-- Keep-a-live style -->     <xs:element name="futherDetails">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="50">           <xs:element name="futherDetail" type="TailSet"/>           <!-- Sets of names and values -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localDeviceCapabilitiesReply" type="local:DeviceCapabilitiesReply" minOccurs="0"/>   </xs:sequence> </xs:complexType>

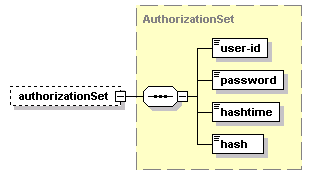

element DeviceCapabilitiesReply/authorizationSet

diagram
type	AuthorizationSet
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	user-id password hashtime hash
source	<xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>

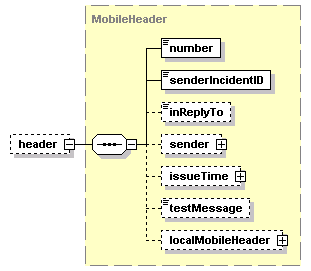

element DeviceCapabilitiesReply/header

diagram
type	MobileHeader
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	number senderIncidentID inReplyTo sender issueTime testMessage localMobileHeader
source	<xs:element name="header" type="MobileHeader" minOccurs="0"/>

element DeviceCapabilitiesReply/number

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="number" type="ReferenceID"/>

element DeviceCapabilitiesReply/devicePrefs

diagram
type	DevicePreferences
properties	isRef  0 content  simple
source	<xs:element name="devicePrefs" type="DevicePreferences"/>

element DeviceCapabilitiesReply/pingStyle

diagram
type	PingStyle
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pingStyle" type="PingStyle" minOccurs="0"/>

element DeviceCapabilitiesReply/futherDetails

diagram
properties	isRef  0 content  complex
children	futherDetail
source	<xs:element name="futherDetails">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="50">       <xs:element name="futherDetail" type="TailSet"/>       <!-- Sets of names and values -->     </xs:sequence>   </xs:complexType> </xs:element>

element DeviceCapabilitiesReply/futherDetails/futherDetail

diagram
type	TailSet
properties	isRef  0 content  complex
children	set
source	<xs:element name="futherDetail" type="TailSet"/>

element DeviceCapabilitiesReply/localDeviceCapabilitiesReply

diagram
type	local:DeviceCapabilitiesReply
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localDeviceCapabilitiesReply" type="local:DeviceCapabilitiesReply" minOccurs="0"/>
