Documentation for ATIS-Draft-03-00-79

Simple Type: Link-lanes-number-open

[Table of contents]

Super-types:	xs:unsignedByte < Link-lanes-number-open (by restriction)
Sub-types:	None

Name	Link-lanes-number-open
Content	Base XSD Type: unsignedByte value <= 50
Documentation	<Definition> The lowest number of lanes currently open in the link at any point.</Definition> <Remarks> V1.1 - Changed the descriptive name from LINK_NumLanesOpen_quantity to LINK_LanesOpen_quantity. Changed the value domain from SI 10-1997 to ANSI X3.4. V1.3 - Removed ANSI X3.4 from Value Domain. V1.7 - Added FADD_ID attribute; revised Class Name, Classification Scheme Name/Version, Data Concept Identifier/Version to reflect harmonization with ITS Data Registry.</Remarks> lanes

Name

Link-lanes-number-open

Content

Base XSD Type: unsignedByte

value <= 50

Documentation

<Definition> The lowest number of lanes currently open in the link at any point.</Definition> <Remarks> V1.1 - Changed the descriptive name from LINK_NumLanesOpen_quantity to LINK_LanesOpen_quantity. Changed the value domain from SI 10-1997 to ANSI X3.4. V1.3 - Removed ANSI X3.4 from Value Domain. V1.7 - Added FADD_ID attribute; revised Class Name, Classification Scheme Name/Version, Data Concept Identifier/Version to reflect harmonization with ITS Data Registry.</Remarks> lanes

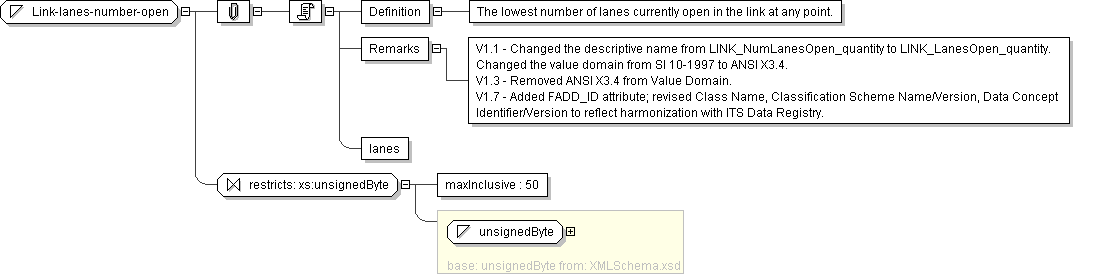

Diagram

Schema Component Representation

<xs:simpleType name="Link-lanes-number-open">

<xs:restriction base=" xs:unsignedByte ">

<xs:maxInclusive value="50"/>

</xs:restriction>

</xs:simpleType>
