Documentation for ATIS-Draft-03-00-79

Element: scpPriorityUpdate

[Table of contents]

Name scpPriorityUpdate
Type ScpPriorityUpdate
Nillable no
Abstract no

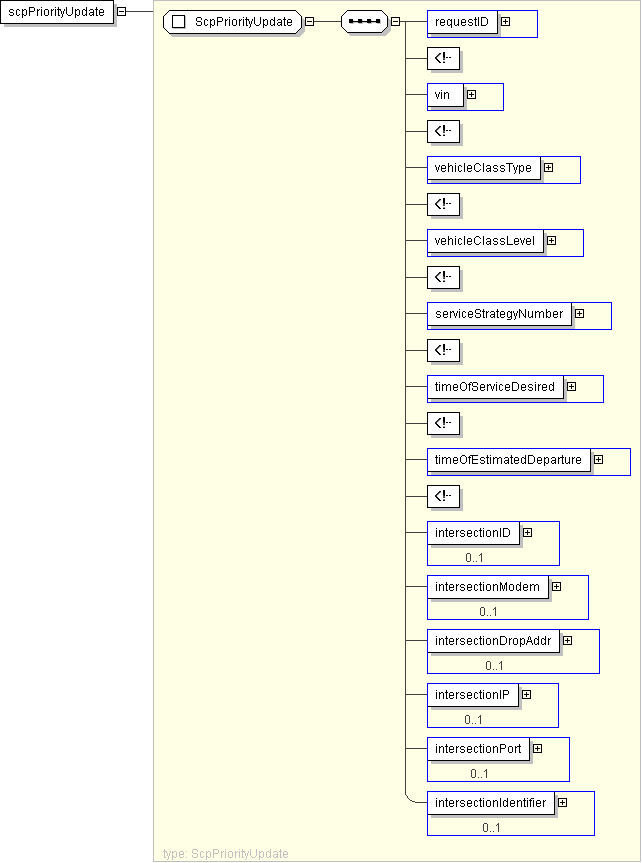

Logical Diagram
XML Instance Representation
<scpPriorityUpdate>
<requestID> SCP-PriorityRequestID </requestID> [1]
<vin> CPT-VIN </vin> [1]
<vehicleClassType> SCP-VehicleClassType </vehicleClassType> [1]
<vehicleClassLevel> SCP-VehicleClassLevel </vehicleClassLevel> [1]
<serviceStrategyNumber> SCP-PriorityStrategyNumber </serviceStrategyNumber> [1]
<timeOfServiceDesired> SCP-TimeInterval </timeOfServiceDesired> [1]
<timeOfEstimatedDeparture> SCP-TimeInterval </timeOfEstimatedDeparture> [1]
<intersectionID> TSP-TMS-IntersectionID </intersectionID> [0..1]
<intersectionModem> TSP-ModemPhoneNum </intersectionModem> [0..1]
<intersectionDropAddr> TSP-DropAddr </intersectionDropAddr> [0..1]
<intersectionIP> CPT-IP-Address </intersectionIP> [0..1]
<intersectionPort> CPT-UDP-TCP-PortNumber </intersectionPort> [0..1]
<intersectionIdentifier> tmdd:Intersection-identifier </intersectionIdentifier> [0..1]
</scpPriorityUpdate>

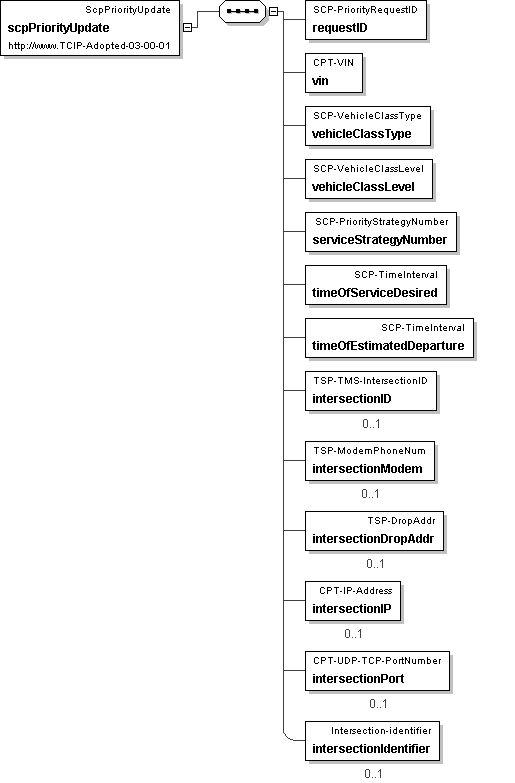

Diagram
h-1433183564 h767755952 h852119864 h637933894 h-218386414 h288728548 h288728548 h-705632520 h789768065 h930976033 h1940310233 h1843986733 h-1868755896
Schema Component Representation
<xs:element name="scpPriorityUpdate" type=" ScpPriorityUpdate "/>
