Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

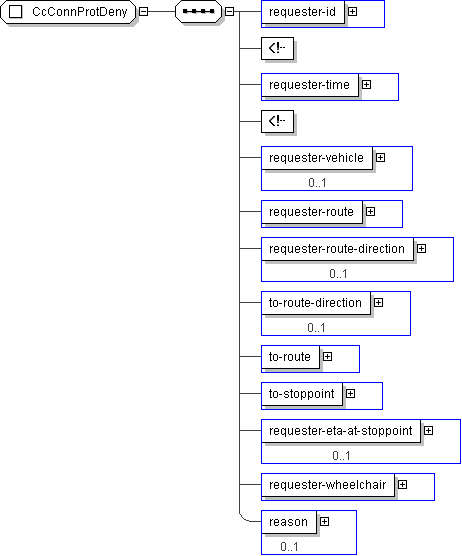

Name	CcConnProtDeny
Used by (from the same schema document)	Element ccConnProtDeny
Abstract	no

XML Instance Representation

<...>

<requester-id> CC-TravelerRequestID </requester-id> [1]

<requester-time> CPT-DateTime </requester-time> [1]

<requester-vehicle> CPTVehicleIden </requester-vehicle> [0..1]

<requester-route> SCHRouteIden </requester-route> [1]

<requester-route-direction> lrms:Direction </requester-route-direction> [0..1]

<to-route-direction> lrms:Direction </to-route-direction> [0..1]

<to-route> SCHRouteIden </to-route> [1]

<to-stoppoint> CPTStoppointIden </to-stoppoint> [1]

<requester-eta-at-stoppoint> CPT-DateTime </requester-eta-at-stoppoint> [0..1]

<requester-wheelchair> CPT-Boolean </requester-wheelchair> [1]

<reason> CC-TravelerDenyReason </reason> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcConnProtDeny">

<xs:sequence>

<xs:element name="requester-id" type=" CC-TravelerRequestID "/>

<-- assigned by requester entity -->

<xs:element name="requester-time" type=" CPT-DateTime "/>

<-- time requested -->

<xs:element name="requester-vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="requester-route" type=" SCHRouteIden "/>

<xs:element name="requester-route-direction" type=" lrms:Direction " minOccurs="0"/>

<xs:element name="to-route-direction" type=" lrms:Direction " minOccurs="0"/>

<xs:element name="to-route" type=" SCHRouteIden "/>

<xs:element name="to-stoppoint" type=" CPTStoppointIden "/>

<xs:element name="requester-eta-at-stoppoint" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="requester-wheelchair" type=" CPT-Boolean "/>

<xs:element name="reason" type=" CC-TravelerDenyReason " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
