Documentation for ATIS-Draft-03-00-79

Element: fcReportReconcileCashboxAck

[Table of contents]

Name fcReportReconcileCashboxAck
Type FcReportReconcileCashboxAck
Nillable no
Abstract no

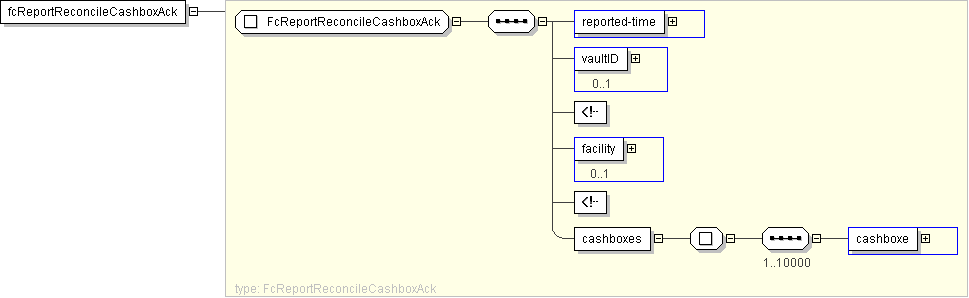

Logical Diagram
h1766694022 h1337810659
XML Instance Representation
<fcReportReconcileCashboxAck>
<reported-time> CPT-DateTime </reported-time> [1]
<vaultID> CPT-SerialNumber </vaultID> [0..1]
<facility> CPTTransitFacilityIden </facility> [0..1]
<cashboxes> [1]
Start Sequence [1..10000]
<cashboxe> CPT-SerialNumber </cashboxe> [1]
End Sequence
</cashboxes>
</fcReportReconcileCashboxAck>

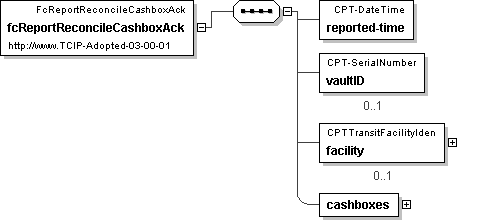

Diagram
h1272267302 h-565816472 h2133900120 h-565816472
Schema Component Representation
<xs:element name="fcReportReconcileCashboxAck" type=" FcReportReconcileCashboxAck "/>
