Documentation for ATIS-Draft-03-00-79

Element: imSilentAlarm

[Table of contents]

Name imSilentAlarm
Type ImSilentAlarm
Nillable no
Abstract no

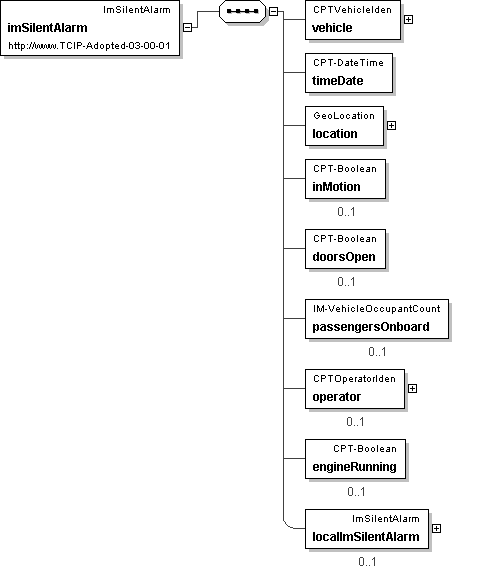

Logical Diagram
h-1556768535 h-1128346216 h765023879 h-1898544208
XML Instance Representation
<imSilentAlarm>
<vehicle> CPTVehicleIden </vehicle> [1]
<timeDate> CPT-DateTime </timeDate> [1]
<location> lrms:GeoLocation </location> [1]
<inMotion> CPT-Boolean </inMotion> [0..1]
<doorsOpen> CPT-Boolean </doorsOpen> [0..1]
<passengersOnboard> IM-VehicleOccupantCount </passengersOnboard> [0..1]
<operator> CPTOperatorIden </operator> [0..1]
<engineRunning> CPT-Boolean </engineRunning> [0..1]
<localImSilentAlarm> local:ImSilentAlarm </localImSilentAlarm> [0..1]
</imSilentAlarm>

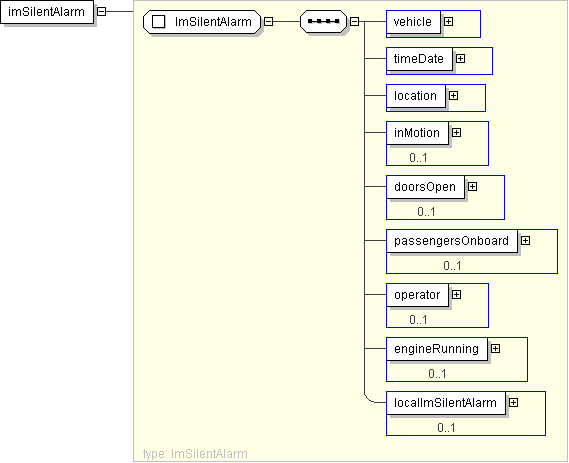

Diagram
h1471596526 h1272267302 h-542031743 h325016637 h325016637 h959121578 h324755946 h325016637 h-155876653
Schema Component Representation
<xs:element name="imSilentAlarm" type=" ImSilentAlarm "/>
