Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTAssignedContractor
Used by (from the same schema document)	Complex Type CCWorkOrder , Complex Type CCWOUpdate
Abstract	no

XML Instance Representation

<...>

<company> CPT-CompanyName </company> [0..1]

<firstName> CPT-PersonFirstName </firstName> [0..1]

<middleName> CPT-PersonMiddleName </middleName> [0..1]

<lastName> CPT-PersonLastName </lastName> [0..1]

<phone> CPT-EmployeeTelephone </phone> [0..1]

<role> CPT-Footnote </role> [0..1]

<localCPTAssignedContractor> local:CPTAssignedContractor </localCPTAssignedContractor> [0..1]

</...>

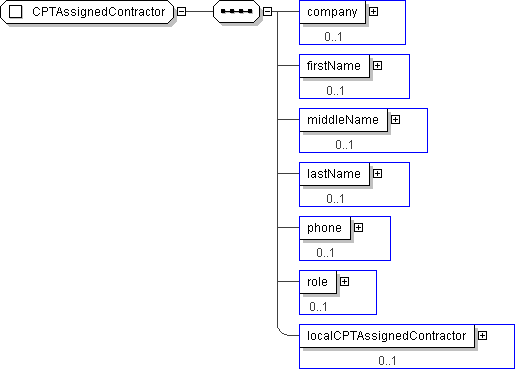

Schema Component Representation

<xs:complexType name="CPTAssignedContractor">

<xs:sequence>

<xs:element name="company" type=" CPT-CompanyName " minOccurs="0"/>

<xs:element name="firstName" type=" CPT-PersonFirstName " minOccurs="0"/>

<xs:element name="middleName" type=" CPT-PersonMiddleName " minOccurs="0"/>

<xs:element name="lastName" type=" CPT-PersonLastName " minOccurs="0"/>

<xs:element name="phone" type=" CPT-EmployeeTelephone " minOccurs="0"/>

<xs:element name="role" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="localCPTAssignedContractor" type=" local:CPTAssignedContractor " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
