Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCH-TripTimePtAttribute
Used by (from the same schema document)	Complex Type SCHTripTimepoint
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 14 Locally defined type: Base XSD Type: string value comes from list: {'layover'\|'relief'\|'control'\|'transfer'\|'recovery'\|'pullIn'\|'pullOut'\|'maxLoadPt'\|'arrive'\|'depart'\|'schedAdhOn'\|'schedAdhOff'\|'rtAdhOn'\|'rtAdhOff'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	layover (1) -- Layover relief (2) -- Relief control (3) -- Control transfer (4) -- Transfer recovery (5) -- Recovery pullIn (6) -- Pull in pullOut (7) -- Pull out maxLoadPt (8) -- Maximum load point arrive (9) -- Arrive depart (10) -- Depart schedAdhOn (11) -- Schedule Adherence On schedAdhOff (12) -- Schedule Adherence Off rtAdhOn (13) -- Route Adherence On rtAdhOff (14) -- Route Adherence Off -- 15-127 reserved -- 128-255 local use

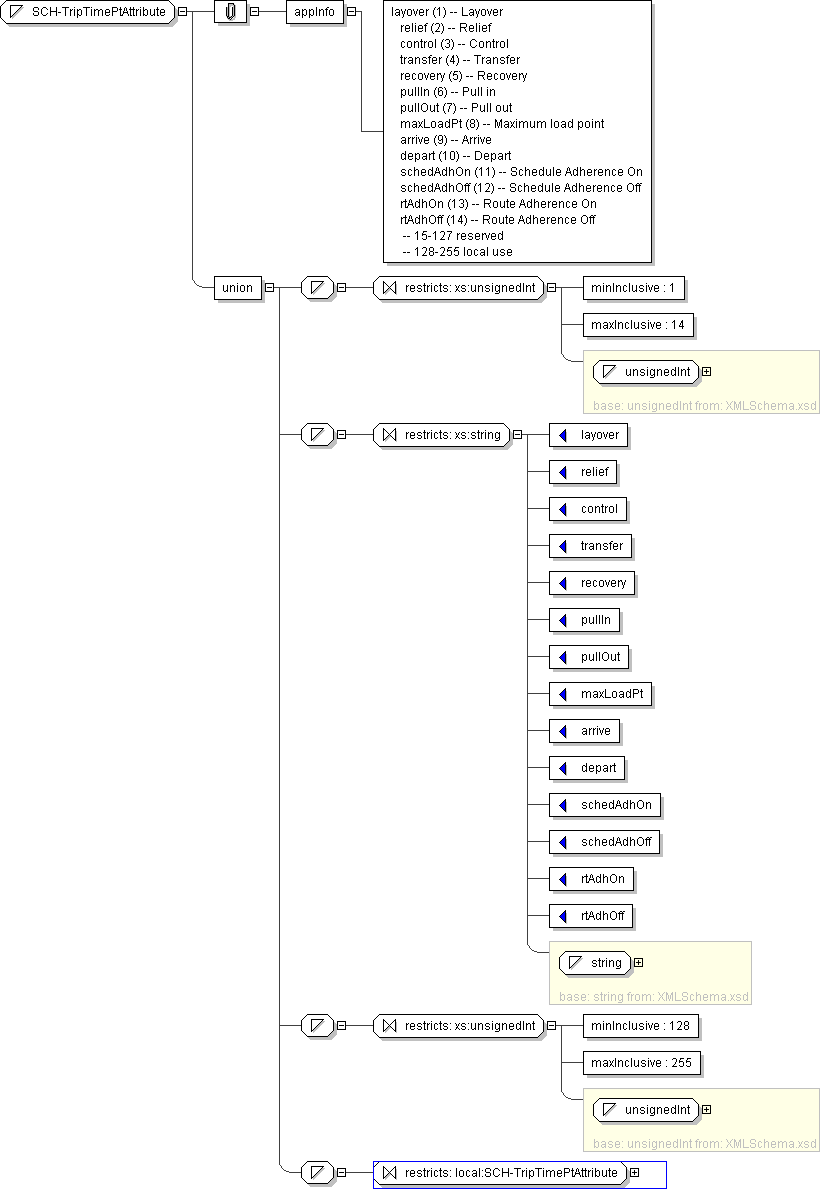

Schema Component Representation

<xs:simpleType name="SCH-TripTimePtAttribute">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="14"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="layover"/>

<xs:enumeration value="relief"/>

<xs:enumeration value="control"/>

<xs:enumeration value="transfer"/>

<xs:enumeration value="recovery"/>

<xs:enumeration value="pullIn"/>

<xs:enumeration value="pullOut"/>

<xs:enumeration value="maxLoadPt"/>

<xs:enumeration value="arrive"/>

<xs:enumeration value="depart"/>

<xs:enumeration value="schedAdhOn"/>

<xs:enumeration value="schedAdhOff"/>

<xs:enumeration value="rtAdhOn"/>

<xs:enumeration value="rtAdhOff"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:SCH-TripTimePtAttribute "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
